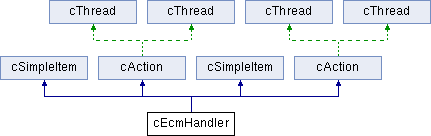

Inheritance diagram for cEcmHandler:

Public Member Functions
	cEcmHandler (cCam Cam, cDevice Device, const char *DevId, int cwindex)
virtual	~cEcmHandler ()
void	Stop (void)
void	SetPrg (cPrg *Prg)
void	ShiftCwIndex (int cwindex)
char *	CurrentKeyStr (void) const
bool	IsRemoveable (void)
bool	IsIdle (void)
int	Sid (void) const
int	CwIndex (void) const
const char *	Id (void) const
	cEcmHandler (cCam Cam, cDevice Device, const char *DevId, int cwindex)
virtual	~cEcmHandler ()
void	Stop (void)
void	SetPrg (cPrg *Prg)
void	ShiftCwIndex (int cwindex)
char *	CurrentKeyStr (void) const
bool	IsRemoveable (void)
bool	IsIdle (void)
int	Sid (void) const
int	CwIndex (void) const
const char *	Id (void) const
Protected Member Functions
virtual void	Process (cPidFilter filter, unsigned char data, int len)
virtual void	Process (cPidFilter filter, unsigned char data, int len)

Detailed Description

Definition at line 871 of file cam.c.

Constructor & Destructor Documentation

cEcmHandler::cEcmHandler	(	cCam *	Cam,
		cDevice *	Device,
		const char *	DevId,
		int	cwindex
	)

Definition at line 928 of file cam.c.

References bprintf().

:cAction("ecmhandler",Device,DevId)
,failed(32,0)
{
  cam=Cam;
  devId=DevId;
  cwIndex=cwindex;
  sys=0; filter=0; ecm=0; ecmPri=0; mode=-1;
  trigger=ecmUpd=false; triggerMode=-1;
  filterSource=filterTransponder=0; filterCwIndex=-1; filterSid=-1;
  id=bprintf("%s.%d",devId,cwindex);
}

cEcmHandler::~cEcmHandler ( ) [virtual]

Definition at line 941 of file cam.c.

References cAction::DelAllFilter(), free, cThread::Lock(), and cThread::Unlock().

{
  Lock();
  StopEcm();
  DelAllFilter(); // delete filters before sys for multi-threading reasons
  DeleteSys();
  Unlock();
  free(id);
}

cEcmHandler::cEcmHandler	(	cCam *	Cam,
		cDevice *	Device,
		const char *	DevId,
		int	cwindex
	)

virtual cEcmHandler::~cEcmHandler ( ) [virtual]

Member Function Documentation

char * cEcmHandler::CurrentKeyStr ( void ) const

Definition at line 1278 of file cam.c.

References cSystem::CurrentKeyStr().

Referenced by cCam::CurrentKeyStr().

{
  if(noKey || !sys) return 0;
  return strdup(sys->CurrentKeyStr());
}

char* cEcmHandler::CurrentKeyStr ( void ) const

int cEcmHandler::CwIndex ( void ) const [inline]

Definition at line 924 of file cam.c.

Referenced by cCam::AddPrg().

{ return cwIndex; }

int cEcmHandler::CwIndex ( void ) const [inline]

Definition at line 924 of file cam.c.

{ return cwIndex; }

const char* cEcmHandler::Id ( void ) const [inline]

Definition at line 925 of file cam.c.

Referenced by cCam::AddPrg().

{ return id; }

const char* cEcmHandler::Id ( void ) const [inline]

Definition at line 925 of file cam.c.

{ return id; }

bool cEcmHandler::IsIdle ( void )

Definition at line 951 of file cam.c.

References cSimpleListBase::Count(), cMutex::Lock(), cPrg::pids, and cMutex::Unlock().

Referenced by cCam::AddPrg(), IsRemoveable(), Process(), SetPrg(), and Stop().

{
  dataMutex.Lock();
  int n=prg.pids.Count();
  dataMutex.Unlock();
  return n==0;
}

bool cEcmHandler::IsRemoveable ( void )

Definition at line 959 of file cam.c.

References cTimeMs::Elapsed(), IsIdle(), and MAX_ECM_IDLE.

{
  return IsIdle() && idleTime.Elapsed()>MAX_ECM_IDLE;
}

void cEcmHandler::Process	(	cPidFilter *	filter,
		unsigned char *	data,
		int	len
	)		`[protected, virtual]`

Implements cAction.

Definition at line 1066 of file cam.c.

References cMsgCache::Cache(), cPrg::caDescr, cEcmInfo::caId, cSystem::CheckECM(), cSystem::CheckECMResult(), cMsgCache::Clear(), cSystem::Constant(), cSystem::CW(), CW_REPEAT_TIME, cSystem::DoLog(), cCam::DumpAV7110(), ECM_DATA_TIME, cTimeMs::Elapsed(), cPidFilter::Flush(), cMsgCache::Get(), HEXDUMP, IDLE_GETCA, IDLE_GETCA_SLOW, IDLE_NO_SYNC, IDLE_SLEEP, IDLE_SYNC, IsIdle(), cCam::IsSoftCSA(), L_CORE_ECM, L_CORE_ECMPROC, L_GEN_DEBUG, L_HEX_ECM, LDUMP, cMutex::Lock(), LOG_COUNT, max(), MAX_ECM_HOLD, cSystem::MaxEcmTry(), min(), cSystem::Name(), cSystem::NeedsData(), NULL, cPidFilter::Pid(), PRINTF, cSystem::ProcessECM(), cEcmInfo::provId, cRewriter::Rewrite(), cEcmInfo::rewriter, SCT_LEN, cTimeMs::Set(), cCaDescr::Set(), cPidFilter::SetIdleTime(), cPrg::sid, cPrg::source, cTimeMs::TimedOut(), cCaDescr::ToString(), cPrg::transponder, cMutex::Unlock(), and cCam::WriteCW().

{
  dataMutex.Lock();
  if(trigger) {
    PRINTF(L_CORE_ECM,"%s: triggered SID %d/%d idx %d/%d mode %d/%d %s",
      id,filterSid,prg.sid,filterCwIndex,cwIndex,mode,triggerMode,(mode==3 && sync)?"sync":"-");
    trigger=false;
    if(filterSid!=prg.sid) {
      filterSid=prg.sid;
      filterSource=prg.source;
      filterTransponder=prg.transponder;
      filterCwIndex=cwIndex;
      noKey=true; mode=0;
      }
    else {
      if(filterCwIndex!=cwIndex) {
        filterCwIndex=cwIndex;
        if(mode==3 && sync)
          cam->WriteCW(filterCwIndex,lastCw,true);
        }
      if(mode<triggerMode) mode=triggerMode;
      }
    if(!(prg.caDescr==filterCaDescr)) {
      filterCaDescr.Set(&prg.caDescr);
      ecmUpd=true;
//XXX
PRINTF(L_CORE_ECM,"%s: new caDescr: %s",id,*filterCaDescr.ToString());
      }
    triggerMode=-1;
    }
  dataMutex.Unlock();

  switch(mode) {
    case -1:
      filter->SetIdleTime(IDLE_SLEEP);
      break;

    case 0:
      StopEcm();
      if(IsIdle()) { mode=-1; break; }

      dolog=LOG_COUNT;
      NewEcm();
      filter->SetIdleTime(IDLE_GETCA);
      startecm.Set();
      mode=1;
      break;

    case 1:
      if(!ecm && !JumpEcm()) {
        if(startecm.Elapsed()>IDLE_GETCA_SLOW) {
          if(IsIdle()) { mode=0; break; }
          PRINTF(L_CORE_ECM,"%s: no encryption system found",id);
          filter->SetIdleTime(IDLE_GETCA_SLOW/4);
          startecm.Set();
          }
        break;
        }
      mode=4;
      // fall through

    case 4:
    case 5:
      NoSync(mode==4);
      failed.Clear();
      filter->SetIdleTime(IDLE_NO_SYNC/2);
      lastsync.Set();
      cryptPeriod=20*1000;
      mode=2;
      // fall through

    case 2:
      if(sys->NeedsData()) {
        if(!UpdateEcm()) {
          if(lastsync.Elapsed()<ECM_DATA_TIME) break;
          PRINTF(L_CORE_ECM,"%s: no ecm extra data update (waited %d ms)",id,(int)lastsync.Elapsed());
          }
        if(lastsync.Elapsed()>IDLE_NO_SYNC/4 && dolog)
          PRINTF(L_CORE_ECM,"%s: ecm extra data update took %d ms",id,(int)lastsync.Elapsed());
        }
      filter->SetIdleTime(IDLE_NO_SYNC);
      mode=3;
      // fall through

    case 3:
      {
      bool resend=false, cwok=false;
      if(resendTime.TimedOut()) {
        resend=sync; resendTime.Set(8*24*60*60*1000);
        }

      if(startecm.Elapsed()<3*60*1000) cam->DumpAV7110();

      if(data && len>0) {
        HEXDUMP(L_HEX_ECM,data,len,"ECM sys 0x%04x id 0x%02x pid 0x%04x",ecm->caId,ecm->provId,filter->Pid());
        if(SCT_LEN(data)==len) {
          if(ecm->rewriter) {
            ecm->rewriter->Rewrite(data,len);
            HEXDUMP(L_HEX_ECM,data,len,"rewritten to");
            }
          LDUMP(L_CORE_ECMPROC,data,16,"%s: ECM",id);
          int n;
          if(!(n=sys->CheckECM(ecm,data,sync))) {
            if(resend || parity!=(data[0]&1)) {
              int ecmid;
              cTimeMs procTime;
              cwok=(ecmid=failed.Get(data,len,0))>=0 && sys->ProcessECM(ecm,data);
              n=(ecmid>0)?failed.Cache(ecmid,cwok,0):99;
              sys->CheckECMResult(ecm,data,cwok);
              if(cwok) {
                parity=data[0]&1;
                }
              else {
                if(procTime.Elapsed()>6000) {
                  PRINTF(L_CORE_ECM,"%s: filter flush (elapsed %d)",id,(int)procTime.Elapsed());
                  filter->Flush();
                  }
                if(n>=2) { count++; if(n==2) count++; }
                parity=0xFF;
                if(sync && lastsync.Elapsed()>cryptPeriod*2) {
                  PRINTF(L_CORE_ECM,"%s: lost sync (period %d, elapsed %d)",id,cryptPeriod,(int)lastsync.Elapsed());
                  NoSync(true);
                  }
                }
              PRINTF(L_CORE_ECMPROC,"%s: (%s) cwok=%d ecmid=%d n=%d sync=%d parity=%d count=%d ELA=%d",
                    id,sys->Name(),cwok,ecmid,n,sync,parity,count,(int)procTime.Elapsed());
              }
            }
          else {
            PRINTF(L_CORE_ECMPROC,"%s: check result %d",id,n);
            switch(n) {
              case 1: NoSync(true); break;
              case 2: count++; break;
              case 3: break;
              }
            }
          }
        else {
          PRINTF(L_CORE_ECM,"%s: incomplete section %d != %d",id,len,SCT_LEN(data));
          count++;
          }
        }
      else if(sys->Constant()) {
        if(sys->ProcessECM(ecm,NULL)) {
          cwok=true;
          if(sync) filter->SetIdleTime(IDLE_SYNC*10);
          }
        else count++;
        }
      else count++;

      if(cwok) {
        dolog=LOG_COUNT; sys->DoLog(true);
        cam->WriteCW(filterCwIndex,sys->CW(),resend || !sync);
        memcpy(lastCw,sys->CW(),sizeof(lastCw));
        noKey=false; count=0;
        UpdateEcm(); EcmOk();
        if(!sync) {
          sync=true;
          filter->SetIdleTime(IDLE_SYNC);
          PRINTF(L_CORE_ECM,"%s: correct key found",id);
          if(!cam->IsSoftCSA(filterCwIndex==0))
            resendTime.Set(CW_REPEAT_TIME);
          }
        else if(!resend)
          cryptPeriod=max(5000,min(60000,(int)lastsync.Elapsed()));
        lastsync.Set();
        }

      if(!sync && !trigger) {
        if(count>=sys->MaxEcmTry()) {
          EcmFail(); JumpEcm();
          mode=4;
          if(!ecm) {
            JumpEcm();
            if(!ecm) { // this should not happen!
              PRINTF(L_GEN_DEBUG,"internal: handler %s, empty ecm list in sync loop",id);
              mode=0; break;
              }
            // if we looped through all systems, we wait until the next parity
            // change before we try again.
            if(dolog!=LOG_COUNT && data) { parity=data[0]&1; mode=5; }
            if(dolog && !--dolog) {
              sys->DoLog(false);
              PRINTF(L_CORE_ECM,"%s: stopping message log until valid key is found",id);
              }
            }
          break;
          }
        }

      if(IsIdle() && idleTime.Elapsed()>MAX_ECM_HOLD) {
        PRINTF(L_CORE_ECM,"%s: hold timeout expired",id);
        mode=0;
        }

      break;
      }
    }
}

virtual void cEcmHandler::Process	(	cPidFilter *	filter,
		unsigned char *	data,
		int	len
	)		`[protected, virtual]`

Implements cAction.

void cEcmHandler::SetPrg ( cPrg * Prg )

Definition at line 994 of file cam.c.

References cSimpleListBase::Add(), cPrg::caDescr, cSimpleListBase::Clear(), cSimpleListBase::Del(), cSimpleList< T >::First(), cPrg::HasPidCaDescr(), IDLE_SLEEP, IsIdle(), L_CORE_ECM, L_CORE_PIDS, L_GEN_DEBUG, L_GEN_ERROR, LBEND, LBPUT, LBSTART, cMutex::Lock(), cAction::NewFilter(), cSimpleList< T >::Next(), cPrgPid::pid, pid::pid, cPrg::pids, PRINTF, cPrgPid::Proc(), cCaDescr::Set(), cTimeMs::Set(), cCam::SetCWIndex(), cPrg::sid, cPrg::source, cPrg::transponder, TYPENAME, cMutex::Unlock(), and cPidFilter::Wakeup().

Referenced by cCam::AddPrg().

{
  dataMutex.Lock();
  bool wasIdle=IsIdle();
  if(Prg->sid!=prg.sid) {
    PRINTF(L_CORE_ECM,"%s: setting new SID %d",id,Prg->sid);
    prg.sid=Prg->sid;
    prg.source=Prg->source;
    prg.transponder=Prg->transponder;
    idleTime.Set();
    prg.pids.Clear();
    trigger=true;
    }
  if(Prg->HasPidCaDescr())
    PRINTF(L_GEN_DEBUG,"internal: pid specific caDescr not supported at this point (sid=%d)",Prg->sid);
  LBSTART(L_CORE_PIDS);
  LBPUT("%s: pids on entry",id);
  for(cPrgPid *pid=prg.pids.First(); pid; pid=prg.pids.Next(pid))
    LBPUT(" %s=%04x",TYPENAME(pid->type),pid->pid);
  LBEND();

  for(cPrgPid *pid=prg.pids.First(); pid;) {
    cPrgPid *npid;
    for(npid=Prg->pids.First(); npid; npid=Prg->pids.Next(npid)) {
      if(pid->pid==npid->pid) {
        npid->Proc(true);
        break;
        }
      }
    if(!npid) {
      npid=prg.pids.Next(pid);
      prg.pids.Del(pid);
      pid=npid;
      }
    else pid=prg.pids.Next(pid);
    }
  LBSTART(L_CORE_PIDS);
  LBPUT("%s: pids after delete",id);
  for(cPrgPid *pid=prg.pids.First(); pid; pid=prg.pids.Next(pid))
    LBPUT(" %s=%04x",TYPENAME(pid->type),pid->pid);
  LBEND();
  for(cPrgPid *npid=Prg->pids.First(); npid; npid=Prg->pids.Next(npid)) {
    if(!npid->Proc()) {
      cPrgPid *pid=new cPrgPid(npid->type,npid->pid);
      prg.pids.Add(pid);
      cam->SetCWIndex(pid->pid,cwIndex);
      }
    }
  LBSTART(L_CORE_PIDS);
  LBPUT("%s: pids after add",id);
  for(cPrgPid *pid=prg.pids.First(); pid; pid=prg.pids.Next(pid))
    LBPUT(" %s=%04x",TYPENAME(pid->type),pid->pid);
  LBEND();
  if(!IsIdle()) {
    if(!(prg.caDescr==Prg->caDescr)) prg.caDescr.Set(&Prg->caDescr);
    trigger=true;
    triggerMode=0;
    if(wasIdle) PRINTF(L_CORE_ECM,"%s: is no longer idle",id);
    }
  else {
    if(!wasIdle) idleTime.Set();
    PRINTF(L_CORE_ECM,"%s: is idle%s",id,wasIdle?"":" now");
    }

  if(!filter) {
    filter=NewFilter(IDLE_SLEEP);
    if(!filter) PRINTF(L_GEN_ERROR,"failed to open ECM filter in handler %s",id);
    }
  dataMutex.Unlock();
  if(filter) filter->Wakeup();
}

void cEcmHandler::ShiftCwIndex ( int cwindex )

Definition at line 978 of file cam.c.

References bprintf(), cSimpleList< T >::First(), free, L_CORE_PIDS, cMutex::Lock(), cSimpleList< T >::Next(), pid::pid, cPrg::pids, PRINTF, cCam::SetCWIndex(), cMutex::Unlock(), and cPidFilter::Wakeup().

{
  if(cwIndex!=cwindex) {
    PRINTF(L_CORE_PIDS,"%s: shifting cwIndex from %d to %d",id,cwIndex,cwindex);
    free(id);
    id=bprintf("%s.%d",devId,cwindex);
    dataMutex.Lock();
    trigger=true;
    cwIndex=cwindex;
    for(cPrgPid *pid=prg.pids.First(); pid; pid=prg.pids.Next(pid))
      cam->SetCWIndex(pid->pid,cwIndex);
    dataMutex.Unlock();
    if(filter) filter->Wakeup();
    }
}

void cEcmHandler::ShiftCwIndex ( int cwindex )

int cEcmHandler::Sid ( void ) const [inline]

Definition at line 923 of file cam.c.

References cPrg::sid.

{ return prg.sid; }

int cEcmHandler::Sid ( void ) const [inline]

Definition at line 923 of file cam.c.

References cPrg::sid.

Referenced by cCam::AddPrg().

{ return prg.sid; }

void cEcmHandler::Stop ( void )

Definition at line 964 of file cam.c.

References cSimpleListBase::Clear(), IsIdle(), L_CORE_ECM, cMutex::Lock(), cPrg::pids, PRINTF, cTimeMs::Set(), cPrg::sid, cMutex::Unlock(), and cPidFilter::Wakeup().

{
  dataMutex.Lock();
  if(!IsIdle() || prg.sid!=-1) {
    PRINTF(L_CORE_ECM,"%s: stop",id);
    prg.sid=-1;
    idleTime.Set();
    prg.pids.Clear();
    trigger=true;
    }
  dataMutex.Unlock();
  if(filter) filter->Wakeup();
}

The documentation for this class was generated from the following files:

cam.c
contrib/sasc-ng/sc/PLUGINS/src/sc-src/cam.c

cEcmHandler Class Reference

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
