#include <cam.h>

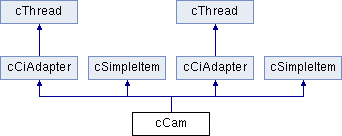

Inheritance diagram for cCam:

Public Member Functions
	cCam (cDevice Device, int Adapter, int Frontend, const char DevId, cScDevicePlugin *DevPlugin, bool SoftCSA, bool FullTS)
virtual	~cCam ()
int	GetCaids (int slot, unsigned short *Caids, int max)
void	CaidsChanged (void)
	SASC.
virtual bool	SetCaDescr (ca_descr_t *ca_descr, bool initial)
virtual bool	SetCaPid (ca_pid_t *ca_pid)
void	Stop (void)
void	AddPrg (cPrg *prg)
bool	HasPrg (int prg)
void	WriteCW (int index, unsigned char *cw, bool force)
void	SetCWIndex (int pid, int index)
void	DumpAV7110 (void)
bool	IsSoftCSA (bool live)
	SASC.
int	Adapter (void)
int	Frontend (void)
void	LogEcmStatus (const cEcmInfo *ecm, bool on)
void	AddHook (cLogHook *hook)
bool	TriggerHook (int id)
bool	Active (bool log)
void	HouseKeeping (void)
void	Tune (const cChannel *channel)
void	PostTune (void)
void	SetPid (int type, int pid, bool on)
char *	CurrentKeyStr (int num, const char **id)
bool	OwnSlot (const cCamSlot *slot) const
cDeCSA *	DeCSA (void) const
	cCam (cDevice Device, int Adapter, int Frontend, const char DevId, cScDevicePlugin *DevPlugin, bool SoftCSA, bool FullTS)
virtual	~cCam ()
int	GetCaids (int slot, unsigned short *Caids, int max)
void	CaidsChanged (void)
virtual bool	SetCaDescr (ca_descr_t *ca_descr, bool initial)
virtual bool	SetCaPid (ca_pid_t *ca_pid)
void	Stop (void)
void	AddPrg (cPrg *prg)
bool	HasPrg (int prg)
void	WriteCW (int index, unsigned char *cw, bool force)
void	SetCWIndex (int pid, int index)
void	DumpAV7110 (void)
bool	IsSoftCSA (bool live)
int	Adapter (void)
int	Frontend (void)
void	LogEcmStatus (const cEcmInfo *ecm, bool on)
void	AddHook (cLogHook *hook)
bool	TriggerHook (int id)
bool	Active (bool log)
void	HouseKeeping (void)
void	Tune (const cChannel *channel)
void	PostTune (void)
void	SetPid (int type, int pid, bool on)
char *	CurrentKeyStr (int num, const char **id)
bool	OwnSlot (const cCamSlot *slot) const
cDeCSA *	DeCSA (void) const
Protected Member Functions
virtual int	Read (unsigned char *Buffer, int MaxLength)
virtual void	Write (const unsigned char *Buffer, int Length)
virtual bool	Reset (int Slot)
virtual eModuleStatus	ModuleStatus (int Slot)
	Returns the status of the CAM in the given Slot.
virtual bool	Assign (cDevice *Device, bool Query=false)
virtual int	Read (unsigned char *Buffer, int MaxLength)
virtual void	Write (const unsigned char *Buffer, int Length)
virtual bool	Reset (int Slot)
virtual eModuleStatus	ModuleStatus (int Slot)
	Returns the status of the CAM in the given Slot.
virtual bool	Assign (cDevice *Device, bool Query=false)

Detailed Description

Definition at line 149 of file cam.h.

Constructor & Destructor Documentation

cCam::cCam	(	cDevice *	Device,
		int	Adapter,
		int	Frontend,
		const char *	DevId,
		cScDevicePlugin *	DevPlugin,
		bool	SoftCSA,
		bool	FullTS
	)

SASC

Definition at line 2038 of file cam.c.

References Adapter(), CAM_READ_TIMEOUT, Frontend(), KILOBYTE, L_GEN_ERROR, LEN_OFF, PRINTF, cCams::Register(), cThread::SetDescription(), cCiFrame::SetRb(), and cThread::Start().

{
  device=Device; devplugin=DevPlugin; adapter=Adapter; frontend=Frontend; devId=DevId;
  softcsa=SoftCSA; fullts=FullTS;
  tcid=0; rebuildcaids=false;
  memset(version,0,sizeof(version));
#ifndef SASC
  memset(slots,0,sizeof(slots));
  SetDescription("SC-CI adapter on device %s",devId);
  rb=new cRingBufferLinear(KILOBYTE(8),6+LEN_OFF,false,"SC-CI adapter read");
  if(rb) {
    rb->SetTimeouts(0,CAM_READ_TIMEOUT);
    frame.SetRb(rb);
    BuildCaids(true);
    slots[0]=new cScCamSlot(this,devId,0);
    Start();
    }
  else PRINTF(L_GEN_ERROR,"failed to create ringbuffer for SC-CI adapter %s.",devId);

  decsa=softcsa ? new cDeCSA(devId) : 0;
#endif //!SASC

  source=transponder=-1; liveVpid=liveApid=0; logger=0; hookman=0;
  memset(lastCW,0,sizeof(lastCW));
  memset(indexMap,0,sizeof(indexMap));
  memset(splitSid,0,sizeof(splitSid));
  cams.Register(this);
}

cCam::~cCam ( ) [virtual]

SASC

Definition at line 2067 of file cam.c.

References cThread::Cancel(), cSimpleListBase::Clear(), cMutex::Lock(), cMutex::Unlock(), and cCams::Unregister().

{
  cams.Unregister(this);
  handlerList.Clear();
  delete hookman;
  delete logger;
#ifndef SASC
  Cancel(3);
  ciMutex.Lock();
  delete rb; rb=0;
  ciMutex.Unlock();
  delete decsa; decsa=0;
#endif //!SASC
}

cCam::cCam	(	cDevice *	Device,
		int	Adapter,
		int	Frontend,
		const char *	DevId,
		cScDevicePlugin *	DevPlugin,
		bool	SoftCSA,
		bool	FullTS
	)

virtual cCam::~cCam ( ) [virtual]

Member Function Documentation

bool cCam::Active ( bool log )

Definition at line 2467 of file cam.c.

References cSimpleList< T >::First(), L_GEN_INFO, cSimpleList< T >::Next(), and PRINTF.

{
  cMutexLock lock(&camMutex);
  for(cEcmHandler *handler=handlerList.First(); handler; handler=handlerList.Next(handler))
    if(!handler->IsIdle()) {
      if(log) PRINTF(L_GEN_INFO,"handler %s on card %s is not idle",handler->Id(),devId);
      return true;
      }
  return false;
}

bool cCam::Active ( bool log )

int cCam::Adapter ( void ) [inline]

Definition at line 213 of file cam.h.

Referenced by cCam().

{ return adapter; }

int cCam::Adapter ( void ) [inline]

Definition at line 213 of file cam.h.

{ return adapter; }

void cCam::AddHook ( cLogHook * hook )

Definition at line 2508 of file cam.c.

References cHookManager::AddHook().

Referenced by cSystem::AddHook().

{
  cMutexLock lock(&camMutex);
  if(!hookman) hookman=new cHookManager(device,devId);
  if(hookman) hookman->AddHook(hook);
}

void cCam::AddHook ( cLogHook * hook )

void cCam::AddPrg ( cPrg * prg )

Definition at line 2319 of file cam.c.

References cSimpleListBase::Add(), cPrgPid::caDescr, cPrg::caDescr, cSimpleListBase::Clear(), cCaDescr::Clear(), cScSetup::ConcurrentFF, cSimpleListBase::Count(), cEcmHandler::CwIndex(), cSimpleListBase::Del(), cSimpleList< T >::First(), i, cEcmHandler::Id(), cEcmHandler::IsIdle(), IsSoftCSA(), cPrg::IsUpdate(), L_CORE_PIDS, LBEND, LBPUT, LBSTART, LBSTARTF, MAX_SPLIT_SID, cSimpleList< T >::Next(), cPrgPid::pid, pid::pid, cPrg::pids, PRINTF, ScSetup, cCaDescr::Set(), cEcmHandler::SetPrg(), cEcmHandler::Sid(), cPrg::sid, SIDGRP_SHIFT, cPrg::SimplifyCaDescr(), cPrg::source, cPrg::transponder, and TYPENAME.

Referenced by sascCam::AddPrg(), and cScCamSlot::Process().

{
  cMutexLock lock(&camMutex);
  bool islive=false;
  for(cPrgPid *pid=prg->pids.First(); pid; pid=prg->pids.Next(pid))
    if(pid->pid==liveVpid || pid->pid==liveApid) {
      islive=true;
      break;
      }
  bool needZero=!IsSoftCSA(islive) && (islive || !ScSetup.ConcurrentFF);
  bool noshift=IsSoftCSA(true) || (prg->IsUpdate() && prg->pids.Count()==0);
  PRINTF(L_CORE_PIDS,"%s: %s SID %d (zero=%d noshift=%d)",devId,prg->IsUpdate()?"update":"add",prg->sid,needZero,noshift);
  if(prg->pids.Count()>0) {
    LBSTART(L_CORE_PIDS);
    LBPUT("%s: pids",devId);
    for(cPrgPid *pid=prg->pids.First(); pid; pid=prg->pids.Next(pid))
      LBPUT(" %s=%04x",TYPENAME(pid->type),pid->pid);
    LBEND();
    }
  bool isSplit=false;
  if(prg->pids.Count()>0 && prg->SimplifyCaDescr()) isSplit=true;
  else {
    for(int i=0; splitSid[i]; i++)
      if(splitSid[i]==prg->sid) { isSplit=true; break; }
    }
  if(!isSplit) {
    cEcmHandler *handler=GetHandler(prg->sid,needZero,noshift);
    if(handler) {
      PRINTF(L_CORE_PIDS,"%s: found handler for SID %d (%s idle=%d idx=%d)",devId,prg->sid,handler->Id(),handler->IsIdle(),handler->CwIndex());
      prg->source=source;
      prg->transponder=transponder;
      handler->SetPrg(prg);
      }
    }
  else {
    PRINTF(L_CORE_PIDS,"%s: SID %d is handled as splitted",devId,prg->sid);
    // first update the splitSid list
    if(prg->pids.Count()==0) { // delete
      for(int i=0; splitSid[i]; i++)
        if(splitSid[i]==prg->sid) {
          memmove(&splitSid[i],&splitSid[i+1],sizeof(splitSid[0])*(MAX_SPLIT_SID-i));
          break;
          }
      PRINTF(L_CORE_PIDS,"%s: deleted from list",devId);
      }
    else { // add
      bool has=false;
      int i;
      for(i=0; splitSid[i]; i++) if(splitSid[i]==prg->sid) has=true;
      if(!has) {
        if(i<MAX_SPLIT_SID) {
          splitSid[i]=prg->sid;
          splitSid[i+1]=0;
          PRINTF(L_CORE_PIDS,"%s: added to list",devId);
          }
        else PRINTF(L_CORE_PIDS,"%s: split SID list overflow",devId);
        }
      }
    LBSTART(L_CORE_PIDS);
    LBPUT("%s: split SID list now:",devId);
    for(int i=0; i<=MAX_SPLIT_SID; i++) LBPUT(" %d",splitSid[i]);
    LBEND();
    // prepare an empty prg head
    cPrg work;
    work.source=source;
    work.transponder=transponder;
    // loop through pids
    int group=1;
    cPrgPid *first;
    while((first=prg->pids.First())) {
      LBSTARTF(L_CORE_PIDS);
      LBPUT("%s: group %d pids",devId,group);
      prg->pids.Del(first,false);
      work.caDescr.Set(&first->caDescr);
      first->caDescr.Clear();
      work.pids.Add(first);
      LBPUT(" %04x",first->pid);
      for(cPrgPid *pid=prg->pids.First(); pid;) {
        cPrgPid *next=prg->pids.Next(pid);
        if(work.caDescr==pid->caDescr) { // same group
          prg->pids.Del(pid,false);
          pid->caDescr.Clear();
          work.pids.Add(pid);
          LBPUT(" %04x",pid->pid);
          }
        pid=next;
        }
      LBEND();
      // get a handler for the group
      int grsid=group*SIDGRP_SHIFT+prg->sid;
      cEcmHandler *handler=0;
      if(group==1) {
        // in the first group check if we have a non-split handler
        // for the sid
        for(handler=handlerList.First(); handler; handler=handlerList.Next(handler))
          if(handler->Sid()==prg->sid) {
            // let GetHandler() take care of needZero/noshift stuff
            handler=GetHandler(prg->sid,needZero,noshift);
            break;
            }
        }
      // otherwise get the group-sid handler
      if(!handler) handler=GetHandler(grsid,needZero,noshift);
      if(handler) {
        PRINTF(L_CORE_PIDS,"%s: found handler for group-SID %d (%s idle=%d idx=%d)",devId,grsid,handler->Id(),handler->IsIdle(),handler->CwIndex());
        work.sid=grsid;
        handler->SetPrg(&work);
        }
      // prepare for next group
      work.pids.Clear();
      needZero=false; // only one group can have this
      group++;
      }
    // now we scan the handler list for leftover group handlers
    for(cEcmHandler *handler=handlerList.First(); handler; handler=handlerList.Next(handler)) {
      int sid=handler->Sid();
      if(!handler->IsIdle() && sid>SIDGRP_SHIFT) {
        int gr=sid/SIDGRP_SHIFT;
        sid%=SIDGRP_SHIFT;
        if(sid==prg->sid && gr>=group) {
          PRINTF(L_CORE_PIDS,"%s: idle group handler %s idx=%d",devId,handler->Id(),handler->CwIndex());
          work.sid=handler->Sid();
          handler->SetPrg(&work);
          }
        }
      }
    }
}

bool cCam::Assign	(	cDevice *	Device,
		bool	Query = `false`
	)		`[protected, virtual]`

Assigns this adapter to the given Device, if this is possible. If Query is 'true', the adapter only checks whether it can be assigned to the Device, but doesn't actually assign itself to it. Returns true if the adapter can be assigned to the Device. If Device is NULL, the adapter will be unassigned from any device it was previously assigned to. The value of Query is ignored in that case, and this function always returns 'true'.

Implements cCiAdapter.

Definition at line 2267 of file cam.c.

{
  return Device ? (Device==device) : true;
}

virtual bool cCam::Assign	(	cDevice *	Device,
		bool	Query = `false`
	)		`[protected, virtual]`

Assigns this adapter to the given Device, if this is possible. If Query is 'true', the adapter only checks whether it can be assigned to the Device, but doesn't actually assign itself to it. Returns true if the adapter can be assigned to the Device. If Device is NULL, the adapter will be unassigned from any device it was previously assigned to. The value of Query is ignored in that case, and this function always returns 'true'.

Implements cCiAdapter.

void cCam::CaidsChanged ( void )

SASC.

Definition at line 2103 of file cam.c.

{
  rebuildcaids=true;
}

char * cCam::CurrentKeyStr	(	int	num,
		const char **	id
	)

Definition at line 2457 of file cam.c.

References cEcmHandler::CurrentKeyStr(), cSimpleList< T >::First(), and cSimpleList< T >::Next().

Referenced by cGlobal::CurrKeyStr().

{
  cMutexLock lock(&camMutex);
  if(id) *id=devId;
  cEcmHandler *handler;
  for(handler=handlerList.First(); handler; handler=handlerList.Next(handler))
    if(--num<0) return handler->CurrentKeyStr();
  return 0;
}

char* cCam::CurrentKeyStr	(	int	num,
		const char **	id
	)

cDeCSA* cCam::DeCSA ( void ) const [inline]

Definition at line 228 of file cam.h.

Referenced by SCDEVICE::OpenDvr().

{ return decsa; }

cDeCSA* cCam::DeCSA ( void ) const [inline]

Definition at line 228 of file cam.h.

{ return decsa; }

void cCam::DumpAV7110 ( void )

Definition at line 2584 of file cam.c.

References cScDevicePlugin::DumpAV().

Referenced by cEcmHandler::Process().

{
  devplugin->DumpAV(device);
}

int cCam::Frontend ( void ) [inline]

Definition at line 214 of file cam.h.

Referenced by cCam().

{ return frontend; }

int cCam::Frontend ( void ) [inline]

Definition at line 214 of file cam.h.

{ return frontend; }

int cCam::GetCaids	(	int	slot,
		unsigned short *	Caids,
		int	max
	)

int cCam::GetCaids	(	int	slot,
		unsigned short *	Caids,
		int	max
	)

Definition at line 2090 of file cam.c.

References i, and MAX_CI_SLOT_CAIDS.

{
  BuildCaids(false);
  cMutexLock lock(&ciMutex);
  if(Caids) {
    int i;
    for(i=0; i<MAX_CI_SLOT_CAIDS && i<max && caids[i]; i++) Caids[i]=caids[slot][i];
    Caids[i]=0;
    }
  return version[slot];
}

bool cCam::HasPrg ( int prg )

Definition at line 2448 of file cam.c.

References cSimpleList< T >::First(), and cSimpleList< T >::Next().

{
  cMutexLock lock(&camMutex);
  for(cEcmHandler *handler=handlerList.First(); handler; handler=handlerList.Next(handler))
    if(!handler->IsIdle() && handler->Sid()==prg)
      return true;
  return false;
}

void cCam::HouseKeeping ( void )

Definition at line 2478 of file cam.c.

References cSimpleListBase::Count(), cSimpleList< T >::First(), cSimpleList< T >::Next(), cScSetup::PrestartAU, and ScSetup.

{
  cMutexLock lock(&camMutex);
  for(cEcmHandler *handler=handlerList.First(); handler;) {
    cEcmHandler *next=handlerList.Next(handler);
    if(handler->IsRemoveable()) RemHandler(handler);
    handler=next;
    }
  if(handlerList.Count()<1 && !ScSetup.PrestartAU) {
    delete hookman; hookman=0;
    delete logger; logger=0;
    }
}

void cCam::HouseKeeping ( void )

bool cCam::IsSoftCSA ( bool live )

SASC.

Definition at line 2273 of file cam.c.

Referenced by AddPrg(), and cEcmHandler::Process().

{
  return softcsa && (!fullts || !live);
}

bool cCam::IsSoftCSA ( bool live )

void cCam::LogEcmStatus	(	const cEcmInfo *	ecm,
		bool	on
	)

Definition at line 2501 of file cam.c.

References cLogger::EcmStatus().

Referenced by cSystem::StartLog(), and cSystem::~cSystem().

{
  cMutexLock lock(&camMutex);
  if(on) LogStartup();
  if(logger) logger->EcmStatus(ecm,on);
}

void cCam::LogEcmStatus	(	const cEcmInfo *	ecm,
		bool	on
	)

virtual eModuleStatus cCam::ModuleStatus ( int Slot ) [protected, virtual]

Returns the status of the CAM in the given Slot.

Implements cCiAdapter.

eModuleStatus cCam::ModuleStatus ( int Slot ) [protected, virtual]

Returns the status of the CAM in the given Slot.

Implements cCiAdapter.

Definition at line 2259 of file cam.c.

References cScSetup::CapCheck(), cDevice::CardIndex(), msNone, ScSetup, cScCamSlot::Status(), and Stop().

{
  cMutexLock lock(&ciMutex);
  bool enable=ScSetup.CapCheck(device->CardIndex());
  if(!enable) Stop();
  return (enable && slots[Slot]) ? slots[Slot]->Status():msNone;
}

bool cCam::OwnSlot ( const cCamSlot * slot ) const

Definition at line 2083 of file cam.c.

{
  if(slots[0]==slot) return true;
  //for(int i=0; i<MAX_CI_SLOTS; i++) if(slots[i]==slot) return true;
  return false;
}

void cCam::PostTune ( void )

Definition at line 2289 of file cam.c.

References cLogger::PreScan(), cScSetup::PrestartAU, and ScSetup.

Referenced by SCDEVICE::SetChannelDevice().

{
  if(ScSetup.PrestartAU) {
    LogStartup();
    if(logger) logger->PreScan(source,transponder);
    }
}

void cCam::PostTune ( void )

int cCam::Read	(	unsigned char *	Buffer,
		int	MaxLength
	)		`[protected, virtual]`

Definition at line 2160 of file cam.c.

References CAM_READ_TIMEOUT, cCiFrame::Del(), cTimeMs::Elapsed(), cCiFrame::Get(), L_CORE_CI, L_CORE_CIFULL, L_GEN_DEBUG, LDUMP, LOG, PRINTF, cTimeMs::Set(), and cCondWait::SleepMs().

{
  cMutexLock lock(&ciMutex);
  if(rb && Buffer && MaxLength>0) {
    int s;
    unsigned char *data=frame.Get(s);
    if(data) {
      if(s<=MaxLength) memcpy(Buffer,data,s);
      else PRINTF(L_GEN_DEBUG,"internal: sc-ci %s rb frame size exceeded %d",devId,s);
      frame.Del();
      if(Buffer[2]!=0x80 || LOG(L_CORE_CIFULL)) {
        LDUMP(L_CORE_CI,Buffer,s,"%s.%d <-",devId,Buffer[0]);
        readTimer.Set();
        }
      return s;
      }
    }
  else cCondWait::SleepMs(CAM_READ_TIMEOUT);
  if(LOG(L_CORE_CIFULL) && readTimer.Elapsed()>2000) {
    PRINTF(L_CORE_CIFULL,"%s: read heartbeat",devId);
    readTimer.Set();
    }
  return 0;
}

virtual int cCam::Read	(	unsigned char *	Buffer,
		int	MaxLength
	)		`[protected, virtual]`

virtual bool cCam::Reset ( int Slot ) [protected, virtual]

Resets the CAM in the given Slot. Returns true if the operation was successful.

Implements cCiAdapter.

bool cCam::Reset ( int Slot ) [protected, virtual]

Resets the CAM in the given Slot. Returns true if the operation was successful.

Implements cCiAdapter.

Definition at line 2252 of file cam.c.

References L_CORE_CI, PRINTF, and cScCamSlot::Reset().

{
  cMutexLock lock(&ciMutex);
  PRINTF(L_CORE_CI,"%s: reset of slot %d requested",devId,Slot);
  return slots[Slot] ? slots[Slot]->Reset():false;
}

bool cCam::SetCaDescr	(	ca_descr_t *	ca_descr,
		bool	initial
	)		`[virtual]`

SASC

Definition at line 2562 of file cam.c.

References cScDevicePlugin::SetCaDescr(), and cDeCSA::SetDescr().

Referenced by WriteCW().

{
  if(!softcsa || (fullts && ca_descr->index==0))
    return devplugin->SetCaDescr(device,ca_descr,initial);
#ifndef SASC
  else if(decsa)
    return decsa->SetDescr(ca_descr,initial);
#endif //!SASC
  return false;
}

virtual bool cCam::SetCaDescr	(	ca_descr_t *	ca_descr,
		bool	initial
	)		`[virtual]`

virtual bool cCam::SetCaPid ( ca_pid_t * ca_pid ) [virtual]

bool cCam::SetCaPid ( ca_pid_t * ca_pid ) [virtual]

SASC

Definition at line 2573 of file cam.c.

References cDeCSA::SetCaPid(), and cScDevicePlugin::SetCaPid().

Referenced by SetCWIndex().

{
  if(!softcsa || (fullts && ca_pid->index==0))
    return devplugin->SetCaPid(device,ca_pid);
#ifndef SASC
  else if(decsa)
    return decsa->SetCaPid(ca_pid);
#endif //!SASC
  return false;
}

void cCam::SetCWIndex	(	int	pid,
		int	index
	)

void cCam::SetCWIndex	(	int	pid,
		int	index
	)

Definition at line 2520 of file cam.c.

References cScSetup::ConcurrentFF, L_CORE_PIDS, L_GEN_ERROR, L_GEN_WARN, MAX_CW_IDX, PRINTF, ScSetup, SetCaPid(), and cScSetup::Store().

Referenced by cEcmHandler::SetPrg(), and cEcmHandler::ShiftCwIndex().

{
  if(index<MAX_CW_IDX) {
    ca_pid_t ca_pid;
    ca_pid.pid=pid;
    ca_pid.index=index;
    PRINTF(L_CORE_PIDS,"%s: descrambling pid %04x on index %x",devId,pid,index);
    if(!SetCaPid(&ca_pid))
      if(index>0) {
        PRINTF(L_GEN_ERROR,"CA_SET_PID failed (%s). Expect a black screen/bad recording. Do you use the patched DVB driver?",strerror(errno));
        PRINTF(L_GEN_WARN,"Adjusting 'Concurrent FF streams' to NO");
        ScSetup.ConcurrentFF=0;
        ScSetup.Store(true);
        }
    }
}

void cCam::SetPid	(	int	type,
		int	pid,
		bool	on
	)

Definition at line 2297 of file cam.c.

References L_CORE_PIDS, and PRINTF.

Referenced by SCDEVICE::SetPid().

{
  cMutexLock lock(&camMutex);
  int oldA=liveApid, oldV=liveVpid;
  if(type==1) liveVpid=on ? pid:0;
  else if(type==0) liveApid=on ? pid:0;
  else if(liveVpid==pid && on) liveVpid=0;
  else if(liveApid==pid && on) liveApid=0;
  if(oldA!=liveApid || oldV!=liveVpid)
    PRINTF(L_CORE_PIDS,"%s: livepids video=%04x audio=%04x",devId,liveVpid,liveApid);
}

void cCam::SetPid	(	int	type,
		int	pid,
		bool	on
	)

void cCam::Stop ( void )

Definition at line 2309 of file cam.c.

References cHookManager::Down(), cLogger::Down(), cSimpleList< T >::First(), and cSimpleList< T >::Next().

Referenced by ModuleStatus(), cScCamSlot::Process(), sascCam::Stop(), and Tune().

{
  cMutexLock lock(&camMutex);
  for(cEcmHandler *handler=handlerList.First(); handler; handler=handlerList.Next(handler))
    handler->Stop();
  if(logger) logger->Down();
  if(hookman) hookman->Down();
  memset(splitSid,0,sizeof(splitSid));
}

void cCam::Stop ( void )

bool cCam::TriggerHook ( int id )

Definition at line 2515 of file cam.c.

References cHookManager::TriggerHook().

Referenced by cSystem::TriggerHook().

{
  return hookman && hookman->TriggerHook(id);
}

void cCam::Tune ( const cChannel * channel )

Definition at line 2278 of file cam.c.

References L_CORE_PIDS, PRINTF, cChannel::Source(), Stop(), cSource::ToString(), and cChannel::Transponder().

Referenced by SCDEVICE::SetChannelDevice(), and sascCam::Tune().

{
  cMutexLock lock(&camMutex);
  if(source!=channel->Source() || transponder!=channel->Transponder()) {
    source=channel->Source(); transponder=channel->Transponder();
    PRINTF(L_CORE_PIDS,"%s: now tuned to source %x(%s) transponder %x",devId,source,*cSource::ToString(source),transponder);
    Stop();
    }
  else PRINTF(L_CORE_PIDS,"%s: tune to same source/transponder",devId);
}

void cCam::Tune ( const cChannel * channel )

void cCam::Write	(	const unsigned char *	Buffer,
		int	Length
	)		`[protected, virtual]`

Definition at line 2189 of file cam.c.

References cCiFrame::Avail(), b, TPDU::data, cCiFrame::Del(), cScCamSlot::Frame(), cCiFrame::Get(), cCiFrame::GetBuff(), L_CORE_CI, L_CORE_CIFULL, LDUMP, LOG, PRINTF, cScCamSlot::Process(), cCiFrame::Put(), SB_TAG, TPDU::slot, TAG, TPDU::tag, TPDU::tcid, and TPDU.

{
  cMutexLock lock(&ciMutex);
  if(buff && len>=5) {
    struct TPDU *tpdu=(struct TPDU *)buff;
    int slot=tpdu->slot;
    cCiFrame *slotframe=slots[slot]->Frame();
    if(buff[2]!=0xA0 || buff[3]>0x01 || LOG(L_CORE_CIFULL))
      LDUMP(L_CORE_CI,buff,len,"%s.%d ->",devId,slot);
    if(slots[slot]) {
      switch(tpdu->tag) {
        case 0x81: // T_RCV
          {
          int s;
          unsigned char *d=slotframe->Get(s);
          if(d) {
            unsigned char *b;
            if((b=frame.GetBuff(s+6))) {
              TPDU(b,slot);
              memcpy(b+2,d,s);
              slotframe->Del(); // delete from rb before Avail()
              SB_TAG(b+2+s,slotframe->Avail()>0 ? 0x80:0x00);
              frame.Put();
              }
            else slotframe->Del();
            }
          break;
          }
        case 0x82: // T_CREATE_TC
          {
          tcid=tpdu->data[0];
          unsigned char *b;
          static const unsigned char reqCAS[] = { 0xA0,0x07,0x01,0x91,0x04,0x00,0x03,0x00,0x41 };
          if((b=slotframe->GetBuff(sizeof(reqCAS)))) {
            memcpy(b,reqCAS,sizeof(reqCAS));
            b[2]=tcid;
            slotframe->Put();
            }
          if((b=frame.GetBuff(9))) {
            TPDU(b,slot);
            TAG(&b[2],0x83,0x01); b[4]=tcid;
            SB_TAG(&b[5],slotframe->Avail()>0 ? 0x80:0x00);
            frame.Put();
            }
          break;
          }
        case 0xA0: // T_DATA_LAST
          {
          slots[slot]->Process(buff,len);
          unsigned char *b;
          if((b=frame.GetBuff(6))) {
            TPDU(b,slot);
            SB_TAG(&b[2],slotframe->Avail()>0 ? 0x80:0x00);
            frame.Put();
            }
          break;
          }
        }
      }
    }
  else PRINTF(L_CORE_CIFULL,"%s: short write (buff=%d len=%d)",devId,buff!=0,len);
}

virtual void cCam::Write	(	const unsigned char *	Buffer,
		int	Length
	)		`[protected, virtual]`

void cCam::WriteCW	(	int	index,
		unsigned char *	cw,
		bool	force
	)

Definition at line 2537 of file cam.c.

References L_GEN_ERROR, MAX_CW_IDX, PRINTF, and SetCaDescr().

Referenced by cEcmHandler::Process().

{
  if(index<MAX_CW_IDX) {
    for(int i=0; i<16; i+=4) cw[i+3]=cw[i]+cw[i+1]+cw[i+2];
    ca_descr_t ca_descr;
    ca_descr.index=index;
    unsigned char *last=lastCW[index];
    if(force || memcmp(&cw[0],&last[0],8)) {
      memcpy(&last[0],&cw[0],8);
      ca_descr.parity=0;
      memcpy(ca_descr.cw,&cw[0],8);
      if(!SetCaDescr(&ca_descr,force))
        PRINTF(L_GEN_ERROR,"CA_SET_DESCR failed (%s). Expect a black screen.",strerror(errno));
      }

    if(force || memcmp(&cw[8],&last[8],8)) {
      memcpy(&last[8],&cw[8],8);
      ca_descr.parity=1;
      memcpy(ca_descr.cw,&cw[8],8);
      if(!SetCaDescr(&ca_descr,force))
        PRINTF(L_GEN_ERROR,"CA_SET_DESCR failed (%s). Expect a black screen.",strerror(errno));
      }
    }
}

void cCam::WriteCW	(	int	index,
		unsigned char *	cw,
		bool	force
	)

The documentation for this class was generated from the following files:

cam.h
contrib/sasc-ng/sc/PLUGINS/src/sc-src/cam.h
cam.c
contrib/sasc-ng/sc/PLUGINS/src/sc-src/cam.c

cCam Class Reference

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
