cSystemNagra Class Reference

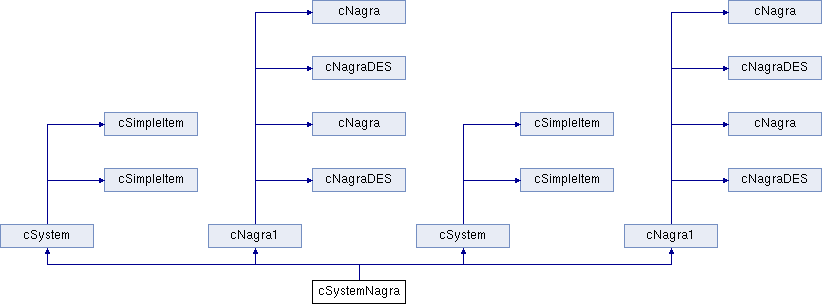

Inheritance diagram for cSystemNagra:

List of all members.

Public Member Functions

 cSystemNagra (void)
virtual ~cSystemNagra ()
virtual bool ProcessECM (const cEcmInfo *ecm, unsigned char *data)
virtual void ProcessEMM (int pid, int caid, const unsigned char *buffer)
 cSystemNagra (void)
virtual ~cSystemNagra ()
virtual bool ProcessECM (const cEcmInfo *ecm, unsigned char *data)
virtual void ProcessEMM (int pid, int caid, const unsigned char *buffer)

Detailed Description

Definition at line 684 of file nagra1.c.

Constructor & Destructor Documentation

cSystemNagra::cSystemNagra ( void  )

Definition at line 697 of file nagra1.c.

References cSystem::hasLogger.

:cSystem(SYSTEM_NAME,SYSTEM_PRI)
{
  emu=0;
  memset(mecmTable,0,sizeof(mecmTable));
  hasLogger=true;
}
cSystemNagra::~cSystemNagra ( ) [virtual]

Definition at line 705 of file nagra1.c.

{
  delete emu;
}
cSystemNagra::cSystemNagra ( void  )
virtual cSystemNagra::~cSystemNagra ( ) [virtual]

Member Function Documentation

bool cSystemNagra::ProcessECM ( const cEcmInfo *  ecm,
unsigned char *  data
) [virtual]

Implements cSystem.

Definition at line 721 of file nagra1.c.

References ADDC3, AUTOMEM, cNagra::CreateRSAPair(), cSystem::cw, cNagraDES::Decrypt(), cNagra1::DecryptECM(), cSystem::doLog, cTimeMs::Elapsed(), cPlainKeys::FindKey(), cPlainKey::Get(), i, keys, KEYSET, L_SYS_ECM, L_SYS_KEY, MBC3, minEcmTime, cKeySnoop::OK(), PRINTF, cNagra::pubExp, RotateBytes(), cNagraDES::SigCheck(), and cCondWait::SleepMs().

{
  int cmdLen=data[4];
  int id=(data[5]*256)+data[6];
  cTimeMs minTime;
  if(data[3]!=0x03) {
    PRINTF(L_SYS_ECM,"invalid ECM");
    return false;
    }
  data+=7;
  if(data[0]!=0x10) {
    PRINTF(L_SYS_ECM,"no ECM data available");
    return false;
    }
  const int ecmLen=data[1];
  const int verType=(data[2]>>3)&1;
  const int keynr=(data[2]>>4)&1;
  const int ecmParm=data[2]&7;
  bool decrypt;
  if(ecmParm==7) decrypt=false;
  else if(ecmParm==5) decrypt=true;
  else {
    PRINTF(L_SYS_ECM,"unknown ecmParm, ignoring ECM");
    return false;
    }

  cKeySnoop ks(this,'N',id,keynr);
  unsigned char sessionKey[8], verifyKey[8];
  bool hasVerifyKey=false;
  cPlainKey *pk;
  if((pk=keys.FindKey('N',id,ADDC3('V',KEYSET(0,0,verType)),sizeof(verifyKey)))) {
    pk->Get(verifyKey);
    hasVerifyKey=true;
    }
  else if(doLog) PRINTF(L_SYS_KEY,"missing %04X V TYP%d key (non-fatal)",id,verType);
  if(!(pk=keys.FindKey('N',id,keynr,sizeof(sessionKey)))) return false;
  pk->Get(sessionKey);

  const int desLen=(ecmLen-9) & ~7; // datalen - signature - ks byte
  unsigned char *decrypted=AUTOMEM(desLen);
  for(int i=(desLen/8)-1; decrypt && i>=0; i--) {
    const int off=i*8;
    Decrypt(data+11+off,sessionKey,decrypted+off);
    }
  if(decrypt && hasVerifyKey && !SigCheck(decrypted,data+3,verifyKey,desLen/8)) {
    PRINTF(L_SYS_ECM,"signature check failed in DES decrypt");
    return false;
    }
  int cwEvenMecmIndex=-1, cwOddMecmIndex=-1;
  switch(decrypted[0]) {
    case 0x10:  // Whole CW
      cwOddMecmIndex=decrypted[1];
      memcpy(cw+8,&decrypted[2],8);
      cwEvenMecmIndex=decrypted[10];
      memcpy(cw,&decrypted[11],8);
      break;
    case 0x11: // Odd CW
      cwOddMecmIndex=decrypted[1];
      memcpy(cw+8, &decrypted[2],8);
      break;
    case 0x12: // Even CW
      cwEvenMecmIndex=decrypted[1];
      memcpy(cw,&decrypted[2],8);
      break;
    default: PRINTF(L_SYS_ECM,"failed to get CW"); return false;
    }

  const unsigned char * const mecmData=data+(ecmLen+2);
  const int mecmRSALen=mecmData[1]-4;
  if((cmdLen-(ecmLen+2))>64 && (*mecmData==0x20 || *mecmData==0x39)) {
    if(mecmRSALen!=64) {
      if(mecmRSALen>64 && doLog)
        PRINTF(L_SYS_ECM,"ECM too big (len: %d)",mecmRSALen);
      return false;
      }

    const int mecmProvId=mecmData[2]*256+mecmData[3];
    const int keyType=(mecmData[4]>>3)&1;
    const int pkey=mecmData[4]&3;

    cBN e1, n1, n2;
    cPlainKey *pk;
    if(!(pk=keys.FindKey('N',mecmProvId,MBC3('E','1',KEYSET(0,pkey,keyType)),-1))) {
      if(doLog) PRINTF(L_SYS_KEY,"missing %04x E1 PK%d TYP%d key",mecmProvId,pkey,keyType);
      return false;
      }
    pk->Get(e1);
    if(!(pk=keys.FindKey('N',mecmProvId,MBC3('N','1',KEYSET(0,pkey,keyType)),-1)))  {
      if(doLog) PRINTF(L_SYS_KEY,"missing %04x N1 PK%d TYP%d key",mecmProvId,pkey,keyType);
      return false;
      }
    pk->Get(n1);
    if(!(pk=keys.FindKey('N',mecmProvId,MBC3('N','2',KEYSET(0,0,keyType)),-1)))  {
      if(doLog) PRINTF(L_SYS_KEY,"missing %04x N2 TYP%d key",mecmProvId,keyType);
      return false;
      }
    pk->Get(n2);
    hasVerifyKey=false;
    if((pk=keys.FindKey('N',mecmProvId,ADDC3('V',KEYSET(0,0,keyType)),sizeof(verifyKey))))  {
      pk->Get(verifyKey);
      hasVerifyKey=true;
      }
    else if(doLog) PRINTF(L_SYS_KEY,"missing %04x V TYP%d key (non-fatal)",mecmProvId,keyType);
    unsigned char *decrMecmData=AUTOMEM(mecmRSALen);
    if(!DecryptECM(&mecmData[4],decrMecmData,hasVerifyKey?verifyKey:0,mecmRSALen,e1,n1,n2))
      return false;

    if(*mecmData==0x39 || (*mecmData==0x20 && (mecmProvId&0xFE00)==0x4800)) {
      unsigned char xor_table[64];
      for(int i=sizeof(xor_table)-1; i>=0; i--) xor_table[i]=63-i;
      CreateRSAPair(&decrMecmData[24],xor_table,e1,n1);

      // new XOR table for MECM data
      cBNctx ctx;
      cBN x;
      BN_mod_exp(x,e1,pubExp,n1,ctx);
      int l=sizeof(xor_table)-BN_num_bytes(x);
      memset(xor_table,0,l);
      BN_bn2bin(x,xor_table+l);
      RotateBytes(xor_table,sizeof(xor_table));

      // And finally, new MECM table
      for(int i=39; i<mecmRSALen; i++) decrMecmData[i]^=xor_table[i-39];
      memcpy(&decrMecmData[3],&decrMecmData[39],mecmRSALen-39);
      }

    if(decrMecmData[0]==0x2F && decrMecmData[1]==mecmData[2] && decrMecmData[2]==mecmData[3])
      WriteTable(decrMecmData+4,decrMecmData[3]*2);
    }

  if(cwOddMecmIndex>=0 && cwOddMecmIndex<0x80) {
    const int d=cwOddMecmIndex*2;
    for(int i=0 ; i<8 ; i++) cw[i+8]^=mecmTable[(d+i)&0xFF]; // odd
    }
  if(cwEvenMecmIndex>=0 && cwEvenMecmIndex<0x80) {
    const int d=cwEvenMecmIndex*2;
    for(int i=0 ; i<8 ; i++) cw[i]^=mecmTable[(d+i)&0xFF]; // even
    }
  ks.OK(pk);
  int i=minEcmTime-minTime.Elapsed();
  if(i>0) cCondWait::SleepMs(i);

  return true;
}
virtual bool cSystemNagra::ProcessECM ( const cEcmInfo *  ecm,
unsigned char *  data
) [virtual]

Implements cSystem.

virtual void cSystemNagra::ProcessEMM ( int  pid,
int  caid,
const unsigned char *  buffer
) [virtual]

Reimplemented from cSystem.

void cSystemNagra::ProcessEMM ( int  pid,
int  caid,
const unsigned char *  buffer
) [virtual]

Reimplemented from cSystem.

Definition at line 866 of file nagra1.c.

References ADDC3, cNagra::CreateRSAPair(), cNagra1::DecryptEMM(), cPlainKeys::FindKey(), cSystem::FoundKey(), cPlainKey::Get(), cEmu::GetOpKeys(), cEmu::GetPkKeys(), HEXDUMP, i, cEmu::Init(), keys, KEYSET, L_SYS_EMM, L_SYS_RAWEMM, cEmu::Matches(), MBC, MBC3, cSystem::NewKey(), cPlainKeys::NewKey(), PRINTF, and SCT_LEN.

{
  const int id=buffer[10]*256+buffer[11];
  static const unsigned char tester[] = { 0x00,0x00,0x00,0x00,0x00,0x00,0x4B };
  if(memcmp(&buffer[3],tester,sizeof(tester)) || SCT_LEN(buffer)<(12+9+64)) {
    PRINTF(L_SYS_EMM,"not a valid EMM structure");
    return;
    }
  const int pkey=(buffer[12]&3);
  cPlainKey *pk;
  cBN e1, n1, n2;
  if(!(pk=keys.FindKey('N',id,MBC3('E','1',KEYSET(0,pkey,0)),-1))) return;
  pk->Get(e1);
  if(!(pk=keys.FindKey('N',id,MBC3('N','1',KEYSET(0,pkey,0)),-1))) return;
  pk->Get(n1);
  unsigned char v[8];
  bool hasVerifyKey=false;
  if((pk=keys.FindKey('N',id,ADDC3('V',KEYSET(0,0,0)),sizeof(v)))) {
    pk->Get(v);
    hasVerifyKey=true;
    }
  int mode=(buffer[12]&8) ? 0:2;
  unsigned char emmdata[64];
  bool r;
  do {
    switch(mode) {
      case 0: // get the ROM10 specific management key
        if(!(pk=keys.FindKey('N',id,MBC3('N','2',KEYSET(10,0,1)),-1))) return;
        pk->Get(n2);
        mode=1; break;
      case 1: // get the ROM11 specific management keys
        if(!(pk=keys.FindKey('N',id,MBC3('E','1',KEYSET(11,pkey,1)),-1))) return;
        pk->Get(e1);
        if(!(pk=keys.FindKey('N',id,MBC3('N','1',KEYSET(11,pkey,1)),-1))) return;
        pk->Get(n1);
        if(!(pk=keys.FindKey('N',id,MBC3('N','2',KEYSET(11,0,1)),-1))) return;
        pk->Get(n2);
        hasVerifyKey=false;
        if((pk=keys.FindKey('N',id,ADDC3('V',KEYSET(11,0,1)),sizeof(v)))) {
          pk->Get(v);
          hasVerifyKey=true;
          }
        mode=-1; break;
      case 2: // get the universal management key
        if(!(pk=keys.FindKey('N',id,MBC3('N','2',KEYSET(0,0,0)),-1))) return;
        pk->Get(n2);
        mode=-1; break;
      }
    r=DecryptEMM(&buffer[12],emmdata,hasVerifyKey?v:0,64,e1,n1,n2);
    } while(!r && mode>=0);
  if(r) {
    HEXDUMP(L_SYS_RAWEMM,emmdata,sizeof(emmdata),"Nagra1 RAWEMM");
    unsigned int i=0;
    bool gotKeys=false;
    unsigned char key0[8], key1[8];
    int keyId=(emmdata[i+1]<<8)+emmdata[i+2];
    switch(emmdata[i]) { // Check filter type
      case 0x00: // One card
        i+=7; break;
      case 0x01: case 0x02: case 0x03: case 0x04: // Group of cards
      case 0x05: case 0x06: case 0x07: case 0x08:
      case 0x09: case 0x0A: case 0x0B: case 0x0C:
      case 0x0D: case 0x0E: case 0x0F: case 0x10:
      case 0x11: case 0x12: case 0x13: case 0x14:
      case 0x15: case 0x16: case 0x17: case 0x18:
      case 0x19: case 0x1A: case 0x1B: case 0x1C:
      case 0x1D: case 0x1E: case 0x1F: case 0x20:
        i+=emmdata[i]+0x7; break;
      case 0x3e:
        i+=6; break;
      case 0x3d: // All cards with same system ID
      case 0x3f:
        i+=3; break;
      }
    int nrKeys=0;
    while(i<sizeof(emmdata)) {
      if((emmdata[i]&0xF0)==0xF0) { // Update with CPU code
        const int romNr=emmdata[i]&0x0F;
        if(!emu || !emu->Matches(romNr,id)) {
          delete emu; emu=0;
          PRINTF(L_SYS_EMM,"setting defaults for ROM %d",romNr);
          switch(romNr) {
            case 3:  emu=new cEmuRom3;  break;
            case 7:  emu=new cEmuRom7;  break;
            case 10: emu=new cEmuRom10; break;
            case 11: emu=new cEmuRom11; break;
            default: PRINTF(L_SYS_EMM,"unsupported ROM"); return;
            }
          if(!emu || !emu->Init(romNr,id)) {
            delete emu; emu=0;
            PRINTF(L_SYS_EMM,"initialization failed for ROM %d",romNr);
            return;
            }
          }
        unsigned char ki[2];
        if((gotKeys=emu->GetOpKeys(emmdata,ki,key0,key1))) {
          keyId=(ki[0]<<8)+ki[1];
          PRINTF(L_SYS_EMM,"got keys for %04X (ROM %d)",keyId,romNr);
          }
        unsigned char select[3], pkset[3][15];
        select[0]=(keyId>>8)|0x01; // always high id for ECM RSA keys
        select[1]=keyId&0xFF;
        select[2]=0; // type 0
        if(emu->GetPkKeys(&select[0],&pkset[0][0])) {
          int pkKeyId=((select[0]<<8)+select[1]);
          PRINTF(L_SYS_EMM,"got PK keys for %04X (ROM %d)",pkKeyId,romNr);
          for(int i=0; i<3; i++) {
            CreateRSAPair(pkset[i],0,e1,n1);
            FoundKey();
            if(keys.NewKey('N',pkKeyId,ADDC3(MBC('N','1'),KEYSET(0,i,0)),n1,64)) NewKey();
            FoundKey();
            if(keys.NewKey('N',pkKeyId,ADDC3(MBC('E','1'),KEYSET(0,i,0)),e1,64)) NewKey();
            }
          }
        break; // don't process other nanos
        }
      else if(emmdata[i]==0x60) { // NULL nano
        i+=2;
        }
      else if(emmdata[i]==0x00) {
        i++;
        }
      else if(emmdata[i]==0x81) {
        i++;
        }
      else if(emmdata[i]==0x83) {
        keyId=(emmdata[i+1]<<8)+emmdata[i+2];
        i+=3;
        }
      else if(emmdata[i]==0x42) { // plain Key
        if(emmdata[i+1]==0x05) memcpy(key0,&emmdata[i+2],sizeof(key0));
        else                   memcpy(key1,&emmdata[i+2],sizeof(key1));
        i+=10;
        if(++nrKeys==2) {
          gotKeys=true;
          PRINTF(L_SYS_EMM,"got keys for %04X (plain)",keyId);
          break;
          }
        }
      else {
        PRINTF(L_SYS_EMM,"ignored nano %02x",emmdata[i]);
        break;
        }
      }
    if(gotKeys) {
      FoundKey();
      if(keys.NewKey('N',keyId,00,key0,8)) NewKey();
      FoundKey();
      if(keys.NewKey('N',keyId,01,key1,8)) NewKey();
      }
    }
}
The documentation for this class was generated from the following files:
