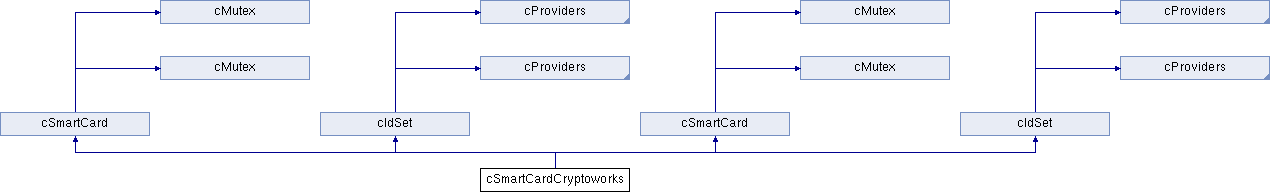

Inheritance diagram for cSmartCardCryptoworks:Public Member Functions | |
| cSmartCardCryptoworks (void) | |
| virtual bool | Init (void) |
| virtual bool | Decode (const cEcmInfo *ecm, const unsigned char *data, unsigned char *cw) |
| virtual bool | Update (int pid, int caid, const unsigned char *data) |
| virtual bool | CanHandle (unsigned short CaId) |
| cSmartCardCryptoworks (void) | |
| virtual bool | Init (void) |
| virtual bool | Decode (const cEcmInfo *ecm, const unsigned char *data, unsigned char *cw) |
| virtual bool | Update (int pid, int caid, const unsigned char *data) |
| virtual bool | CanHandle (unsigned short CaId) |
Definition at line 179 of file sc-cryptoworks.c.
| cSmartCardCryptoworks::cSmartCardCryptoworks | ( | void | ) |
Definition at line 221 of file sc-cryptoworks.c.
:cSmartCard(&cardCfg,msgs) { static const unsigned char cwexp[] = { 0x01,0x00,0x01 }; BN_bin2bn(cwexp,sizeof(cwexp),exp); caid=0; ucpkValid=false; }
| cSmartCardCryptoworks::cSmartCardCryptoworks | ( | void | ) |
| bool cSmartCardCryptoworks::CanHandle | ( | unsigned short | CaId | ) | [virtual] |
Reimplemented from cSmartCard.
Definition at line 455 of file sc-cryptoworks.c.
References caid.
{
return CaId==caid;
}
| virtual bool cSmartCardCryptoworks::CanHandle | ( | unsigned short | CaId | ) | [virtual] |
Reimplemented from cSmartCard.
| bool cSmartCardCryptoworks::Decode | ( | const cEcmInfo * | ecm, |
| const unsigned char * | data, | ||
| unsigned char * | cw | ||
| ) | [virtual] |
Implements cSmartCard.
Definition at line 460 of file sc-cryptoworks.c.
References cSmartCard::CheckSctLen(), exp, HEXDUMP, i, cSmartCard::IsoWrite(), L_SC_ERROR, L_SC_EXTRA, MAX_LEN, PRINTF, cRSA::RSA(), and cSmartCard::Status().
{
static unsigned char ins4c[] = { 0xA4,0x4C,0x00,0x00,0x00 };
unsigned char nanoD4[10];
int l=CheckSctLen(data,-5+(ucpkValid ? sizeof(nanoD4):0));
if(l>5) {
unsigned char buff[MAX_LEN];
if(ucpkValid) {
memcpy(buff,data,l);
nanoD4[0]=0xD4;
nanoD4[1]=0x08;
for(unsigned int i=2; i<sizeof(nanoD4); i++) nanoD4[i]=rand();
memcpy(&buff[l],nanoD4,sizeof(nanoD4));
data=buff; l+=sizeof(nanoD4);
}
ins4c[3]=ucpkValid ? 2 : 0;
ins4c[4]=l-5;
if(IsoWrite(ins4c,&data[5]) && Status() &&
(l=GetLen())>0 && ReadData(buff,l)==l) {
int r=0;
for(int i=0; i<l && r<2; ) {
int n=buff[i+1];
switch(buff[i]) {
case 0xDB: // CW
PRINTF(L_SC_EXTRA,"nano DB (cw)");
if(n==0x10) {
memcpy(cw,&buff[i+2],16);
r|=1;
}
break;
case 0xDF: // signature
PRINTF(L_SC_EXTRA,"nano DF %02x (sig)",n);
if(n==0x08) {
if((buff[i+2]&0x50)==0x50) {
if(buff[i+3]&0x01) PRINTF(L_SC_ERROR,"not decyphered. PIN protected?");
else if(!(buff[i+5]&0x80)) PRINTF(L_SC_ERROR,"missing entitlement. Check your subscription");
else r|=2;
}
}
else if(n==0x40) { // camcrypt
if(ucpkValid) {
if(rsa.RSA(&buff[i+2],&buff[i+2],n,exp,ucpk,false)<=0) {
PRINTF(L_SC_ERROR,"camcrypt RSA failed.");
return false;
}
HEXDUMP(L_SC_EXTRA,&buff[i+2],n,"after camcrypt");
if(!memmem(&buff[i+2+4],n-4,nanoD4,sizeof(nanoD4))) {
PRINTF(L_SC_ERROR,"camcrypt failed. Check IPK/UCPK in your smartcard.conf!");
return false;
}
r=0; l=n-4; n=4;
}
else {
PRINTF(L_SC_ERROR,"valid UCPK needed for camcrypt! Check your smartcard.conf for a IPK/UCPK!");
return false;
}
}
break;
default:
PRINTF(L_SC_EXTRA,"nano %02x (unhandled)",buff[i]);
break;
}
i+=n+2;
}
return r==3;
}
}
return false;
}
| virtual bool cSmartCardCryptoworks::Decode | ( | const cEcmInfo * | ecm, |
| const unsigned char * | data, | ||
| unsigned char * | cw | ||
| ) | [virtual] |
Implements cSmartCard.
| virtual bool cSmartCardCryptoworks::Init | ( | void | ) | [virtual] |
Implements cSmartCard.
| bool cSmartCardCryptoworks::Init | ( | void | ) | [virtual] |
Implements cSmartCard.
Definition at line 267 of file sc-cryptoworks.c.
References cSmartCard::atr, cInfoStr::Begin(), Bin2Int, cSmartCard::CaidsChanged(), chid_dat::chid, cSimpleListBase::count, disableParental, dtIPK, dtPIN, dtUCPK, cSmartCards::FindCardData(), cInfoStr::Finish(), cSimpleListBase::first, chid_dat::from, HEXDUMP, HexStr(), Atr::hist, Atr::histLen, i, chid_dat::id, cSmartCard::idStr, cSmartCard::infoStr, cSmartCard::IsoRead(), cSmartCard::IsoWrite(), j, k, cSmartCardDataCryptoworks::key, L_GEN_WARN, L_SC_ERROR, L_SC_EXTRA, L_SC_INIT, MAX_LEN, chid_dat::name, cSmartCardDataCryptoworks::pin, cLineBuff::Printf(), PRINTF, cRSA::RSA(), SC_NAME, cIdSet::SetCard(), smartcards, chid_dat::status, cSmartCard::Status(), cLineBuff::Strcat(), chid_dat::to, and chid_dat::version.
{
if(atr->histLen<6 || atr->hist[1]!=0xC4 || atr->hist[4]!=0x8F || atr->hist[5]!=0xF1) {
PRINTF(L_SC_INIT,"doesn't look like a Cryptoworks card");
return false;
}
infoStr.Begin();
infoStr.Strcat("Cryptoworks smartcard\n");
ucpkValid=false;
unsigned char buff[MAX_LEN];
int mfid=0x3F20;
if(ReadData(buff,0x11)>0 && buff[0]==0xDF && buff[1]>=6)
mfid=buff[6]*256+buff[7];
else PRINTF(L_SC_ERROR,"reading MF-ID failed, using default 3F20");
unsigned char Caid[2], serial[5];
if(!SelectFile(0x2F01) || ReadRecord(buff,0xD1)<4) {
PRINTF(L_SC_ERROR,"reading record 2f01/d1 failed");
return false;
}
memcpy(Caid,&buff[2],2);
int c=buff[2]*256+buff[3];
if(c!=caid) CaidsChanged();
caid=c;
if(ReadRecord(buff,0x80)<7) {
PRINTF(L_SC_ERROR,"reading record 2f01/80 failed");
return false;
}
SetCard(new cCardCryptoworks(&buff[2]));
memcpy(serial,&buff[2],5);
snprintf(idStr,sizeof(idStr),"%s (V.%d)",SC_NAME,atr->hist[2]);
char str[20];
infoStr.Printf("Card v.%d (PINcount=%d)\n"
"Caid %04x Serial %s\n",
atr->hist[2],atr->hist[3],caid,HexStr(str,&buff[2],5));
PRINTF(L_SC_INIT,"card v.%d (pindown=%d) caid %04x serial %s MF %04X",atr->hist[2],atr->hist[3],caid,HexStr(str,&buff[2],5),mfid);
if(ReadRecord(buff,0x9F)>=3) {
const char *n="(unknown)";
if(ReadRecord(buff+10,0xC0)>=18) n=(char *)buff+10+2;
infoStr.Printf("Issuer: 0x%02x (%.16s)\n",buff[2],n);
PRINTF(L_SC_INIT,"card issuer: 0x%02x %.16s",buff[2],n);
}
if(ReadRecord(buff,0x9E)>=66) {
HEXDUMP(L_SC_EXTRA,&buff[2],64,"card ISK");
cSmartCardDataCryptoworks cd(dtIPK,Caid);
cSmartCardDataCryptoworks *entry=(cSmartCardDataCryptoworks *)smartcards.FindCardData(&cd);
if(entry) {
PRINTF(L_SC_EXTRA,"got IPK from smartcard.conf");
if(rsa.RSA(&buff[2],&buff[2],64,exp,entry->key,false)>0) {
HEXDUMP(L_SC_EXTRA,&buff[2],64,"decrypted ISK");
if(buff[2] == ((mfid&0xFF)>>1)) {
buff[2]|=0x80;
BN_bin2bn(&buff[2],64,ucpk);
ucpkValid=true;
PRINTF(L_SC_INIT,"got UCPK from IPK/ISK");
}
else PRINTF(L_SC_ERROR,"UCPK check failed %02x != %02x",buff[2],(mfid&0xFF)>>1);
}
else PRINTF(L_SC_ERROR,"RSA failed for UCPK");
}
}
if(!ucpkValid) {
cSmartCardDataCryptoworks cd(dtUCPK,serial);
cSmartCardDataCryptoworks *entry=(cSmartCardDataCryptoworks *)smartcards.FindCardData(&cd);
if(entry) {
BN_copy(ucpk,entry->key);
ucpkValid=true;
PRINTF(L_SC_INIT,"got UCPK from smartcard.conf");
}
}
if(!ucpkValid) PRINTF(L_GEN_WARN,"no valid UCPK for cryptoworks smartcard");
// read entitlements
static unsigned char insb8[] = { 0xA4,0xB8,0x00,0x00,0x0C };
unsigned char provId[16];
unsigned int count=0;
insb8[2]=insb8[3]=0x00;
while(IsoRead(insb8,buff) && !EndOfData() && Status()) {
if(buff[0]==0xDF && buff[1]==0x0A) {
int fileno=(buff[4]&0x3F)*256+buff[5];
if((fileno&0xFF00)==0x1F00) {
provId[count++]=fileno&0xFF;
if(count>=sizeof(provId)) break;
}
}
insb8[2]=insb8[3]=0xFF;
}
for(unsigned int i=0; i<count ; i++) {
if(SelectFile(0x1F00+provId[i])) {
const char *n="(unknown)";
if(SelectFile(0x0E11) && ReadRecord(buff,0xD6)>=18) n=(char *)buff+2;
infoStr.Printf("Provider %d: 0x%02x (%.16s)\n",i,provId[i],n);
PRINTF(L_SC_INIT,"provider %d: 0x%02x %.16s",i,provId[i],n);
static unsigned char insa2_0[] = { 0xA4,0xA2,0x01,0x00,0x03,0x83,0x01,0x00 };
static unsigned char insa2_1[] = { 0xA4,0xA2,0x01,0x00,0x05,0x8C,0x00,0x00,0x00,0x00 };
static unsigned char insb2[] = { 0xA4,0xB2,0x00,0x00,0x00 };
static const unsigned int fn[] = { 0x0f00,0x0f20,0x0f40,0x0f60,0 };
static const char *fnName[] = { "Download","Subscriptions","PPV Events","PPV Events",0 };
bool first=true;
for(int j=0; fn[j]; j++) {
if(SelectFile(fn[j])) {
insa2_0[7]=provId[i];
unsigned char *ins=(j==1) ? insa2_1 : insa2_0;
int l;
if(IsoWrite(ins,&ins[5]) && Status() && (l=GetLen())>0) {
if(first) {
infoStr.Printf("id|chid|st|date |name\n");
PRINTF(L_SC_INIT,"| id | chid | stat | date | version | name ");
first=false;
}
infoStr.Printf( "--+----+--+-----------------+------\n"
"%s\n",
fnName[j]);
PRINTF(L_SC_INIT,"+----+------+------+-------------------+----------+-------------");
PRINTF(L_SC_INIT,"| %s",fnName[j]);
insb2[3]=0x00;
insb2[4]=l;
while(IsoRead(insb2,buff) && !EndOfData() && Status()) {
struct chid_dat chid;
memset(&chid,0,sizeof(chid));
for(int k=0; k<l; k+=buff[k+1]+2) {
switch(buff[k]) {
case 0x83:
chid.id=buff[k+2];
break;
case 0x8c:
chid.status=buff[k+2];
chid.chid=buff[k+3]*256+buff[k+4];
break;
case 0x8D:
snprintf(chid.from,sizeof(chid.from),"%02d.%02d.%02d",buff[k+3]&0x1F,((buff[k+2]&1)<<3)+(buff[k+3]>>5),(1990+(buff[k+2]>>1))%100);
snprintf(chid.to ,sizeof(chid.to) ,"%02d.%02d.%02d",buff[k+5]&0x1F,((buff[k+4]&1)<<3)+(buff[k+5]>>5),(1990+(buff[k+4]>>1))%100);
break;
case 0xD5:
snprintf(chid.name,sizeof(chid.name),"%.12s",&buff[k+2]);
chid.version=Bin2Int(&buff[k+14],4);
break;
}
}
infoStr.Printf("%02x|%04x|%02x|%s-%s|%.12s\n",
chid.id,chid.chid,chid.status,chid.from,chid.to,chid.name);
PRINTF(L_SC_INIT,"| %02x | %04x | %02x | %s-%s | %08x | %.12s",
chid.id,chid.chid,chid.status,chid.from,chid.to,chid.version,chid.name);
insb2[3]=0x01;
}
}
}
}
}
}
if(disableParental) {
bool pinOK=false;
if(SelectFile(0x2F11) && ReadRecord(buff,atr->hist[3])>=7) {
pinOK=true;
PRINTF(L_SC_INIT,"read PIN from card.");
}
if(!pinOK) {
cSmartCardDataCryptoworks cd(dtPIN,serial);
cSmartCardDataCryptoworks *entry=(cSmartCardDataCryptoworks *)smartcards.FindCardData(&cd);
if(entry) {
memcpy(&buff[2],entry->pin,4);
pinOK=true;
PRINTF(L_SC_INIT,"got PIN from smartcard.conf.");
}
}
if(pinOK) {
//static const unsigned char ins[] = { 0xA4,0x24,0x00,0x01,0x05 };
static const unsigned char ins[] = { 0xA4,0x20,0x00,0x00,0x04 }; // verify PIN
//static const unsigned char ins[] = { 0xA4,0x26,0x00,0x00,0x04 }; // disable PIN
PRINTF(L_SC_INIT,"your card PIN is %.4s",&buff[2]);
// parental rating
// 0x00 - undefined
// 0x01-0x0f - minimum age=rating+3 years
// 0x10-0xff - reserved for provider usage
buff[6]=0;
if(IsoWrite(ins,&buff[2]) && Status())
PRINTF(L_SC_INIT,"parental rating set to %02x",buff[6]);
else
PRINTF(L_SC_ERROR,"failed to set parental rating.");
}
else PRINTF(L_SC_INIT,"no PIN available.");
}
infoStr.Finish();
return true;
}
| bool cSmartCardCryptoworks::Update | ( | int | pid, |
| int | caid, | ||
| const unsigned char * | data | ||
| ) | [virtual] |
Reimplemented from cSmartCard.
Definition at line 531 of file sc-cryptoworks.c.
References cAssembleData::Assembled(), cSmartCard::CheckSctLen(), cSmartCard::IsoWrite(), cIdSet::MatchAndAssemble(), and cSmartCard::Status().
{
static unsigned char ins[] = { 0xA4,0x42,0x00,0x00,0x00 };
cAssembleData ad(data);
if(MatchAndAssemble(&ad,0,0)) {
while((data=ad.Assembled())) {
int c, n;
switch(data[0]) {
case 0x82: c=0x42; n=10; break;
case 0x84: c=0x48; n=9; break;
case 0x88:
case 0x89: c=0x44; n=5; break;
default: continue;
}
int len=CheckSctLen(data,-n);
if(len>n) {
ins[1]=c;
ins[4]=len-n;
if(IsoWrite(ins,&data[n])) Status();
}
}
return true;
}
return false;
}
| virtual bool cSmartCardCryptoworks::Update | ( | int | pid, |
| int | caid, | ||
| const unsigned char * | data | ||
| ) | [virtual] |
Reimplemented from cSmartCard.
