cSmartCardSlotSRPlus Class Reference

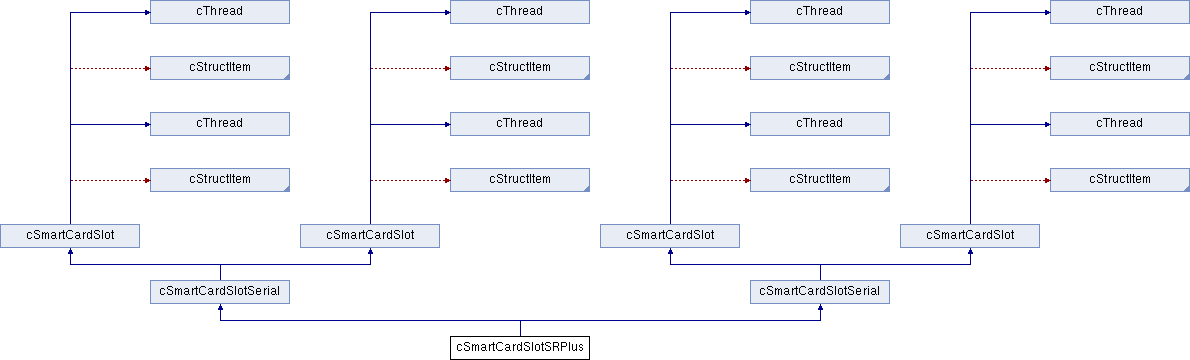

Inheritance diagram for cSmartCardSlotSRPlus:

List of all members.

Public Member Functions
	cSmartCardSlotSRPlus (void)
	cSmartCardSlotSRPlus (void)
Protected Member Functions
virtual bool	DeviceOpen (const char *cfg)
virtual bool	DeviceSetMode (int mode, int baud)
virtual bool	DevicePTS (void)
virtual bool	DeviceOpen (const char *cfg)
virtual bool	DeviceSetMode (int mode, int baud)
virtual bool	DevicePTS (void)

---

Detailed Description

Definition at line 963 of file smartcard.c.

---

Constructor & Destructor Documentation

cSmartCardSlotSRPlus::cSmartCardSlotSRPlus

(

void

)

Definition at line 976 of file smartcard.c.

References cSmartCardSlot::localecho.

{
  localecho=false;
}

cSmartCardSlotSRPlus::cSmartCardSlotSRPlus

(

void

)

---

Member Function Documentation

bool cSmartCardSlotSRPlus::DeviceOpen

(

const char *

cfg

)

[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

Definition at line 981 of file smartcard.c.

References cSmartCardSlot::clock, cSmartCardSlot::devName, cSmartCardSlotSerial::fd, ISO_FREQ, L_CORE_LOAD, L_CORE_SERIAL, L_GEN_ERROR, open(), PRINTF, cSmartCardSlotSerial::SetDtrRts(), and cSmartCardSlot::slotnum.

{
  if(sscanf(cfg,"%255[^:]:%d",devName,&clock)>=1) {
    if(clock<=0) clock=ISO_FREQ;
    PRINTF(L_CORE_SERIAL,"%s: open serial port",devName);
    fd=open(devName,O_RDWR|O_NONBLOCK|O_NOCTTY);
    if(fd>=0) {
      SetDtrRts();
      PRINTF(L_CORE_SERIAL,"%s: init done",devName);
      PRINTF(L_CORE_LOAD,"cardslot: added smartreader+ port %s as port %d (CLOCK %d)",
                devName,slotnum,clock);
      return true;
      }
    else PRINTF(L_GEN_ERROR,"%s: open failed: %s",devName,strerror(errno));
    }
  else PRINTF(L_GEN_ERROR,"bad parameter for cardslot type 'srplus'");
  return false;
}

virtual bool cSmartCardSlotSRPlus::DeviceOpen

(

const char *

cfg

)

[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

virtual bool cSmartCardSlotSRPlus::DevicePTS

(

void

)

[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

bool cSmartCardSlotSRPlus::DevicePTS

(

void

)

[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

Definition at line 1008 of file smartcard.c.

References cSmartCardSlot::atr, cSmartCardSlot::clock, Atr::convention, Atr::D, cSmartCardSlot::devName, Atr::F, Atr::fs, ISO_FREQ, L_CORE_SERIAL, Atr::N, PRINTF, SM_INDIRECT, SM_INDIRECT_INV, and Atr::T.

{
  // Configure SmartReader+ with work settings, ref ISO 7816 3.1.
  int inv=0;
  if(atr.convention==SM_INDIRECT) atr.convention=SM_INDIRECT_INV;
  if(atr.convention==SM_INDIRECT_INV) inv=1;
  // Use ISO work clock frequency unless a fixed frequency is specified.
  int cl=(clock==ISO_FREQ) ? atr.fs:clock;
  if(!SRConfig(atr.F,atr.D,cl,atr.N,atr.T,inv)) return false;
  PRINTF(L_CORE_SERIAL,"%s: SmartReader+ mode %.4f MHz",devName,cl/1000000.0);
  return true;
}

bool cSmartCardSlotSRPlus::DeviceSetMode	(	int	mode,
		int	baud
	)		[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

Definition at line 1000 of file smartcard.c.

References cSmartCardSlot::clock, and ISO_BAUD.

{
  // Configure SmartReader+ with initial settings, ref ISO 7816 3.1.
  return baud==ISO_BAUD &&
         cSmartCardSlotSerial::DeviceSetMode(mode,ISO_BAUD) &&
         SRConfig(372,1.0,clock,0,0,0);
}

virtual bool cSmartCardSlotSRPlus::DeviceSetMode	(	int	mode,
		int	baud
	)		[protected, virtual]

Reimplemented from cSmartCardSlotSerial.

---

The documentation for this class was generated from the following files:

• contrib/sasc-ng/sc/PLUGINS/src/sc-src/smartcard.c
• smartcard.c
