cCardClientGbox Class Reference

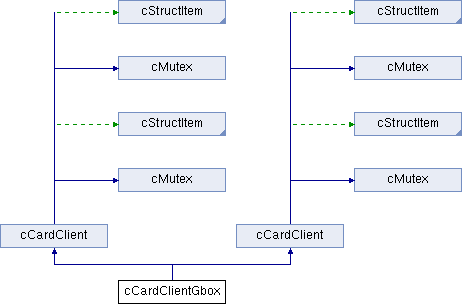

Inheritance diagram for cCardClientGbox:

List of all members.

Public Member Functions
	cCardClientGbox (const char *Name)
virtual bool	Init (const char *CfgDir)
virtual bool	Login (void)
virtual bool	ProcessECM (const cEcmInfo *ecm, const unsigned char *data, unsigned char *Cw)
	cCardClientGbox (const char *Name)
virtual bool	Init (const char *CfgDir)
virtual bool	Login (void)
virtual bool	ProcessECM (const cEcmInfo *ecm, const unsigned char *data, unsigned char *Cw)

---

Detailed Description

Definition at line 35 of file gbox.c.

---

Constructor & Destructor Documentation

cCardClientGbox::cCardClientGbox

(

const char *

Name

)

Definition at line 47 of file gbox.c.

References cNetSocket::SetRWTimeout(), cNetSocket::SetUDP(), and cCardClient::so.

:cCardClient(Name)
{
  so.SetRWTimeout(2*1000);
  so.SetUDP(true);
}

cCardClientGbox::cCardClientGbox

(

const char *

Name

)

---

Member Function Documentation

bool cCardClientGbox::Init

(

const char *

CfgDir

)

[virtual]

Implements cCardClient.

Definition at line 54 of file gbox.c.

References cCardClient::Logout(), and cCardClient::ParseStdConfig().

{
  cMutexLock lock(this);
  Logout();
  int num=0;
  if(!ParseStdConfig(config,&num)) return false;
  return true;
}

virtual bool cCardClientGbox::Init

(

const char *

CfgDir

)

[virtual]

Implements cCardClient.

virtual bool cCardClientGbox::Login

(

void

)

[virtual]

Implements cCardClient.

bool cCardClientGbox::Login

(

void

)

[virtual]

Implements cCardClient.

Definition at line 63 of file gbox.c.

References cNetSocket::Bind(), cCardClient::Logout(), and cCardClient::so.

Referenced by ProcessECM().

{
  Logout();
  if(!so.Bind("127.0.0.1",8003)) return false;
  return true;
}

bool cCardClientGbox::ProcessECM	(	const cEcmInfo *	ecm,
		const unsigned char *	data,
		unsigned char *	Cw
	)		[virtual]

Implements cCardClient.

Definition at line 79 of file gbox.c.

References caid, cEcmInfo::caId, cCardClient::CanHandle(), cNetSocket::Connected(), cEcmInfo::ecm_pid, cNetSocket::Flush(), cEcmInfo::GetCaDescr(), i, L_CC_ECM, L_CC_GBOX, Login(), cCardClient::name, cEcmInfo::prgId, PRINTF, cEcmInfo::provId, SCT_LEN, cNetSocket::SendTo(), SetSctLen(), cCardClient::so, and WORD.

{
  cMutexLock lock(this);
  if((!so.Connected() && !Login()) || !CanHandle(ecm->caId)) return false;
  so.Flush();

  const int caid=ecm->caId;
  const int pid =ecm->ecm_pid;
  int n;
  const unsigned char *descr=ecm->GetCaDescr(&n);
  if(!descr) {
    PRINTF(L_CC_GBOX,"no CA descriptor for caid %04x sid %d prov %04x",caid,ecm->prgId,ecm->provId);
    return false;
    }

  static const unsigned char pmt[] = {
    0x87,
    0x02,0xb0,0x25,     // tid, sct len
    0x17,0x74,          // sid
    0xc3,0x00,0x00,     // vers, sctnr
    0xff,0xec,          // pcr pid
    0xf0,0x00,          // prg info len
    0x02, 0xff,0xec, 0xf0,0x00
    };
  unsigned char buff[512];
  if(sizeof(pmt)+n+8>sizeof(buff)) {
    PRINTF(L_CC_GBOX,"CA descriptor buffer overflow %d",sizeof(pmt)+n+8);
    return false;
    }
  memcpy(buff,pmt,sizeof(pmt));
  buff[4]=ecm->prgId >> 8;
  buff[5]=ecm->prgId & 0xFF;
  memcpy(&buff[sizeof(pmt)],descr,n);
  buff[16]=0xF0 | ((n>>8)&0x0F);
  buff[17]=n & 0xFF;
  SetSctLen(&buff[1],sizeof(pmt)-4+n+4);
  buff[2]=(buff[2]&0x0F)|0xB0;

  if(so.SendTo("127.0.0.1",8004,buff,sizeof(pmt)+n+4)<0) {
    PRINTF(L_CC_GBOX,"failed to send PMT data. GBOX running?");
    return false;
    }

  if((n=GetMsg(0x8a,buff,sizeof(buff)))<0) {
    PRINTF(L_CC_GBOX,"failed to get ECM port. GBOX running?");
    return false;
    }
  int pidnum=-1;
  if(n>=2) {
    for(int i=0 ; i<buff[1]; i++) {
      if(WORD(buff,2+i*2,0x1FFF)==pid) {
        pidnum=i;
        break;
        }
      }
    }
  if(pidnum<0) {
    PRINTF(L_CC_ECM,"%s: unable to decode for CAID %04X/PID %04X",name,caid,pid);
    return false;
    }

  n=SCT_LEN(data);
  if(n>=256) {
    PRINTF(L_CC_ECM,"%s: ECM section too long %d > 255",name,n);
    return false;
    }
  buff[0]=0x88;
  buff[1]=(pid>>8)&0x1F;
  buff[2]=pid & 0xFF;
  buff[3]=n;
  memcpy(&buff[4],data,n);
  n+=4;
  if(so.SendTo("127.0.0.1",8005+pidnum,buff,n)<0) {
    PRINTF(L_CC_GBOX,"failed to send ECM data. GBOX running?");
    return false;
    }

  if(GetMsg(0x89,buff,sizeof(buff))<0) {
    PRINTF(L_CC_GBOX,"failed to get CW. GBOX running?");
    return false;
    }
  if(n<17) {
    PRINTF(L_CC_GBOX,"bad CW answer from GBOX");
    return false;
    }
  memcpy(cw,&buff[1],16);
  return true;
}

virtual bool cCardClientGbox::ProcessECM	(	const cEcmInfo *	ecm,
		const unsigned char *	data,
		unsigned char *	Cw
	)		[virtual]

Implements cCardClient.

---

The documentation for this class was generated from the following files:

• contrib/sasc-ng/sc/PLUGINS/src/sc-src/systems/cardclient/gbox.c
• systems/cardclient/gbox.c
