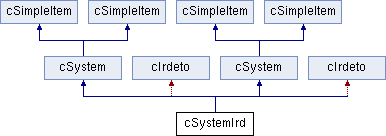

Inheritance diagram for cSystemIrd:Public Member Functions | |
| cSystemIrd (void) | |
| virtual bool | ProcessECM (const cEcmInfo *ecm, unsigned char *source) |
| virtual void | ProcessEMM (int pid, int caid, const unsigned char *buffer) |
| cSystemIrd (void) | |
| virtual bool | ProcessECM (const cEcmInfo *ecm, unsigned char *source) |
| virtual void | ProcessEMM (int pid, int caid, const unsigned char *buffer) |
| cSystemIrd::cSystemIrd | ( | void | ) |
Definition at line 227 of file irdeto1.c.
References cSystem::hasLogger.
:cSystem(SYSTEM_NAME,SYSTEM_PRI) { lastKey=0; hasLogger=true; }
| cSystemIrd::cSystemIrd | ( | void | ) |
| bool cSystemIrd::ProcessECM | ( | const cEcmInfo * | ecm, |
| unsigned char * | source | ||
| ) | [virtual] |
Implements cSystem.
Definition at line 234 of file irdeto1.c.
References cSystem::cw, data, cSystem::doLog, cPlainKeys::FindKey(), cPlainKey::Get(), keys, KEYSET, L_SYS_ECM, cKeySnoop::OK(), PRINTF, cIrdeto::SessionKeyCrypt(), cIrdeto::SignatureCheck(), and TYPE_I1.
{
unsigned char *data=0;
int date=-1, keynr=0;
source+=6;
int length=source[5]+6-5; // 6 header bytes - 5 signature bytes
for(int index=6 ; index<length && (data==0 || date==-1) ;) {
int param=source[index++];
int len =source[index++] & 0x3f;
switch(param) {
case 0x78:
keynr = source[index];
data = &source[index+2];
break;
case 0x00:
case 0x40:
date = (source[index]<<8) | source[index+1];
break;
}
index+=len;
}
if(data==0 || date==-1) {
if(doLog) PRINTF(L_SYS_ECM,"incomplete ECM structure");
return false;
}
cKeySnoop ks(this,'I',source[2],KEYSET(0,TYPE_I1,keynr));
cPlainKey *pk=0;
unsigned char key[8];
while((pk=keys.FindKey('I',source[2],KEYSET(0,TYPE_I1,keynr),sizeof(key),pk))) {
unsigned char save[16];
memcpy(save,data,16); // save the encrypted data
pk->Get(key);
SessionKeyCrypt(&data[0],key,date);
SessionKeyCrypt(&data[8],key,date);
if(SignatureCheck(source,length,key,date,&source[length],8)) {
memcpy(cw,&data[0],16);
ks.OK(pk);
return true;
}
memcpy(data,save,16); // put back the encrypted data if it didn't works
}
return false;
}
| virtual bool cSystemIrd::ProcessECM | ( | const cEcmInfo * | ecm, |
| unsigned char * | source | ||
| ) | [virtual] |
Implements cSystem.
| virtual void cSystemIrd::ProcessEMM | ( | int | pid, |
| int | caid, | ||
| const unsigned char * | buffer | ||
| ) | [virtual] |
Reimplemented from cSystem.
| void cSystemIrd::ProcessEMM | ( | int | pid, |
| int | caid, | ||
| const unsigned char * | buffer | ||
| ) | [virtual] |
Reimplemented from cSystem.
Definition at line 280 of file irdeto1.c.
References cParseIrdeto::AddrBase(), cParseIrdeto::AddrLen(), AUTOMEM, CheckNull(), cIrdeto::DecryptIrd(), cStructList< T >::First(), cSystem::FoundKey(), cIrdCardInfo::haveHMK, cCardIrdeto::hexBase, cIrdCardInfo::HMK, i, k, keys, KeyStr, L_SYS_EMM, LBEND, LBPUT, LBSTARTF, max(), cSystem::NewKey(), cPlainKeys::NewKey(), cStructList< T >::Next(), cIrdCardInfo::PMK, PRINTF, prov, cProviderIrdeto::provBase, cProviderIrdeto::provId, SCT_LEN, cIrdeto::SessionKeyCrypt(), cIrdeto::SignatureCheck(), cIrdCardInfos::Update(), and WORD.
{
int i, numKeys=0, date=0;
unsigned char adr[10], id[4], *pk[4], prov, *mk=0, prvId[3]={0,0,0};
int n=SCT_LEN(data);
unsigned char *buffer=AUTOMEM(n);
memcpy(buffer,data,n);
int index=cParseIrdeto::AddrLen(buffer);
memset(adr,0,sizeof(adr));
memcpy(adr,&buffer[3],index+1);
index+=4+4; // 3 header + adr type + 4 {0x01 0x00 0x00 len}
int sindex=index; // save index for sig. check
int slen=buffer[index-1]-5; // save packet length, 5 signature bytes
int maxIndex=index+slen;
if(maxIndex>n-5) {
PRINTF(L_SYS_EMM,"bad packet length (%d > %d)",maxIndex,n-5);
maxIndex=n-5;
}
bool badnano=false;
while(!badnano && index<maxIndex) {
unsigned char nlen=buffer[index+1] & 0x3F;
//unsigned char prio=buffer[index] & 0x40;
unsigned char nano=buffer[index] & ~0x40;
switch(nano) {
case 0x10: // key update
{
int k=(buffer[index+1]>>6)+1; // key counter
if(nlen!=k*9) { badnano=true; break; }
for(i=0 ; i<k ; i++) {
id[i]= buffer[index+2+0+i*9];
pk[i]=&buffer[index+2+1+i*9];
numKeys++;
}
}
break;
case 0x00: // date
if(nlen<2) { badnano=true; break; }
date=WORD(buffer,index+2,0xFFFF);
break;
case 0x28: // pmk & provid update
if(nlen!=13) { badnano=true; break; }
prov= buffer[index+2+0];
mk= &buffer[index+2+2];
prvId[0]=buffer[index+2+10];
prvId[1]=buffer[index+2+11];
prvId[2]=buffer[index+2+12];
break;
case 0x29: // pmk update
if(nlen!=10) { badnano=true; break; }
prov= buffer[index+2+0];
mk= &buffer[index+2+2];
break;
case 0x11: // channel id
if(nlen!=6) { badnano=true; break; }
//chId[0]=buffer[index+2+0];
//chId[1]=buffer[index+2+1];
break;
case 0x91: // erase channel id
if(nlen!=6) { badnano=true; break; }
//eraseChId[0]=buffer[index+2+0];
//eraseChId[1]=buffer[index+2+1];
break;
case 0x8B: // CB20-matrix
if(nlen!=0x20) { badnano=true; break; }
//cb20ptr=&buffer[index+2];
break;
case 0x22: // set country code
if(nlen!=3) { badnano=true; break; }
//
break;
case 0x95: // unknown
if(nlen!=2) { badnano=true; break; }
//
break;
case 0x1E: // unknown
if(nlen!=15) { badnano=true; break; }
//
break;
case 0x1F: // unknown
if(nlen!=3) { badnano=true; break; }
//
break;
case 0x16: // unknown
if(nlen!=2) { badnano=true; break; }
//
break;
case 0x12: // unknown
if(nlen!=6) { badnano=true; break; }
//
break;
default:
PRINTF(L_SYS_EMM,"unhandled nano 0x%02x",nano);
break;
}
index+=nlen+2;
}
if(badnano || index!=maxIndex) {
PRINTF(L_SYS_EMM,"bad nano/bad paket");
return;
}
// lastKey: save cpu time if we get bursts of the same key
if((numKeys>0 && (id[0]!=lastKey || numKeys>1)) || mk) {
cIrdCardInfo *ci=Icards.First();
unsigned char *chkkey=AUTOMEM(max(sizeof(ci->PMK),sizeof(ci->HMK)));
while(ci) {
ci->hexBase=cParseIrdeto::AddrBase(buffer);
if((numKeys>0 && (ci->cProviderIrdeto::MatchEMM(buffer) || CheckNull(ci->provId,sizeof(ci->provId)) )) ||
(mk && ci->haveHMK && (ci->cCardIrdeto::MatchEMM(buffer)))) {
LBSTARTF(L_SYS_EMM);
LBPUT("%02x %02x%02x%02x",buffer[3],buffer[4],buffer[5],buffer[6]);
for(i=0 ; i<numKeys ; i++) {
lastKey=id[i];
SessionKeyCrypt(pk[i],ci->PMK,date);
}
int keylen;
if(mk) {
memcpy(chkkey,ci->HMK,sizeof(ci->HMK)); // key is modified in decryptIrd()
DecryptIrd(mk,chkkey,128,16);
keylen=sizeof(ci->HMK);
memcpy(chkkey,ci->HMK,sizeof(ci->HMK)); // signature check with HMK
}
else {
keylen=sizeof(ci->PMK);
memcpy(chkkey,ci->PMK,sizeof(ci->PMK)); // signature check with PMK
}
memcpy(&buffer[sindex-6],adr,5);
if(SignatureCheck(&buffer[sindex-6],slen+6,chkkey,date,&buffer[sindex+slen],keylen))
{
char str[20];
LBPUT(" - OK");
for(i=0 ; i<numKeys ; i++) LBPUT(" - PK %02x %s",id[i],KeyStr(str,pk[i]));
if(mk) LBPUT(" - PMK %s",KeyStr(str,mk));
for(i=0 ; i<numKeys ; i++) {
FoundKey();
if(keys.NewKey('I',ci->provBase,id[i],pk[i],8)) NewKey();
}
if(mk) {
FoundKey();
if(Icards.Update(ci,mk,prvId[0]?prvId:0)) NewKey();
}
break;
}
else {
LBPUT(" - FAIL");
}
LBEND();
memcpy(buffer,data,n); // restore the buffer
}
ci=Icards.Next(ci);
}
}
}
