SASC
DVBSoftCAM
Public Member Functions | Protected Member Functions | Protected Attributes

cCardClientCommon Class Reference

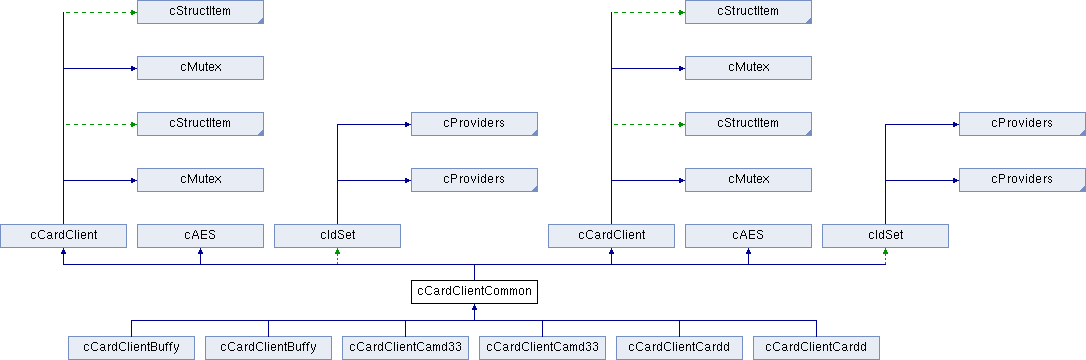

Inheritance diagram for cCardClientCommon:

List of all members.

Public Member Functions

 cCardClientCommon (const char *Name, bool ConReply, bool LogReply, bool DoAES, int MinMsgLen)
virtual bool Init (const char *config)
virtual bool Login (void)
virtual bool Immediate (void)
virtual bool ProcessECM (const cEcmInfo *ecm, const unsigned char *source, unsigned char *cw)
virtual bool ProcessEMM (int caSys, const unsigned char *source)
 cCardClientCommon (const char *Name, bool ConReply, bool LogReply, bool DoAES, int MinMsgLen)
virtual bool Init (const char *config)
virtual bool Login (void)
virtual bool Immediate (void)
virtual bool ProcessECM (const cEcmInfo *ecm, const unsigned char *source, unsigned char *cw)
virtual bool ProcessEMM (int caSys, const unsigned char *source)

Protected Member Functions

bool ParseKeyConfig (const char *config, int *num)
bool ParseUserConfig (const char *config, int *num)
virtual bool SendMsg (const unsigned char *data, int len)
virtual int RecvMsg (unsigned char *data, int len, int to=-1)
virtual void HandleEMMRequest (const unsigned char *buff, int len)
virtual bool CanHandleEMM (int SysId)
bool ParseKeyConfig (const char *config, int *num)
bool ParseUserConfig (const char *config, int *num)
virtual bool SendMsg (const unsigned char *data, int len)
virtual int RecvMsg (unsigned char *data, int len, int to=-1)
virtual void HandleEMMRequest (const unsigned char *buff, int len)
virtual bool CanHandleEMM (int SysId)

Protected Attributes

bool emmProcessing
char username [11]
char password [11]
int emmReqLen

Detailed Description

Definition at line 36 of file camd.c.

Constructor & Destructor Documentation

cCardClientCommon::cCardClientCommon ( const char *  Name,
bool  ConReply,
bool  LogReply,
bool  DoAES,
int  MinMsgLen
)

Definition at line 63 of file camd.c.

References CCTIMEOUT, emmProcessing, emmReqLen, cNetSocket::SetRWTimeout(), and cCardClient::so.

:cCardClient(Name)
{
  conReply=ConReply; logReply=LogReply; doAES=DoAES; minMsgLen=MinMsgLen;
  emmProcessing=exclusive=false;
  so.SetRWTimeout(CCTIMEOUT);
  emmReqLen=-64;
}
cCardClientCommon::cCardClientCommon ( const char *  Name,
bool  ConReply,
bool  LogReply,
bool  DoAES,
int  MinMsgLen
)

Member Function Documentation

virtual bool cCardClientCommon::CanHandleEMM ( int  SysId) [inline, protected, virtual]

Reimplemented in cCardClientCamd33, and cCardClientCamd33.

Definition at line 53 of file camd.c.

Referenced by ProcessEMM().

{ return false; }
virtual bool cCardClientCommon::CanHandleEMM ( int  SysId) [inline, protected, virtual]

Reimplemented in cCardClientCamd33, and cCardClientCamd33.

Definition at line 53 of file camd.c.

{ return false; }
virtual void cCardClientCommon::HandleEMMRequest ( const unsigned char *  buff,
int  len
) [inline, protected, virtual]

Reimplemented in cCardClientCamd33, and cCardClientCamd33.

Definition at line 52 of file camd.c.

{}
virtual void cCardClientCommon::HandleEMMRequest ( const unsigned char *  buff,
int  len
) [inline, protected, virtual]

Reimplemented in cCardClientCamd33, and cCardClientCamd33.

Definition at line 52 of file camd.c.

Referenced by Login(), and ProcessECM().

{}
bool cCardClientCommon::Immediate ( void  ) [virtual]

Reimplemented from cCardClient.

Definition at line 126 of file camd.c.

References cCardClient::emmAllowed.

{
  return emmAllowed && logReply && cCardClient::Immediate();
}
virtual bool cCardClientCommon::Immediate ( void  ) [virtual]

Reimplemented from cCardClient.

virtual bool cCardClientCommon::Init ( const char *  config) [virtual]

Implements cCardClient.

Reimplemented in cCardClientBuffy, and cCardClientBuffy.

bool cCardClientCommon::Init ( const char *  config) [virtual]

Implements cCardClient.

Reimplemented in cCardClientBuffy, and cCardClientBuffy.

Definition at line 131 of file camd.c.

References cCardClient::Logout(), ParseKeyConfig(), cCardClient::ParseStdConfig(), and ParseUserConfig().

{
  cMutexLock lock(this);
  Logout();
  int num=0;
  if(ParseStdConfig(config,&num) &&
     ParseUserConfig(config,&num) &&
     (!doAES || ParseKeyConfig(config,&num))) {
    return true;
    }
  return false;
}
bool cCardClientCommon::Login ( void  ) [virtual]

Implements cCardClient.

Reimplemented in cCardClientBuffy, and cCardClientBuffy.

Definition at line 144 of file camd.c.

References CCVERSION, cNetSocket::Connect(), cCardClient::emmAllowed, emmProcessing, emmReqLen, HandleEMMRequest(), cCardClient::hostname, L_CC_CAMD, L_CC_LOGIN, cCardClient::Logout(), cCardClient::name, password, cCardClient::port, PRINTF, RecvMsg(), SendMsg(), cCardClient::so, and username.

Referenced by cCardClientBuffy::Login(), and ProcessECM().

{
  Logout();
  if(!so.Connect(hostname,port)) return false;
  PRINTF(L_CC_LOGIN,"%s: connected to %s:%d (%s)",name,hostname,port,name);
  emmProcessing=false;

  unsigned char buff[128];
  if(conReply) {
    if(RecvMsg(buff,16)<0) {
      PRINTF(L_CC_CAMD,"bad connect reply");
      return false;
      }
    }

  memset(buff,0,32);
  int user_len=strlen(username)+1;
  memcpy(buff+1,username,user_len);
  int pass_len=strlen(password)+1;
  memcpy(buff+1+user_len+1,password,pass_len);
  int vers_len=strlen(CCVERSION)+1;
  memcpy(buff+1+user_len+pass_len+1,CCVERSION,vers_len);
  PRINTF(L_CC_CAMD,"login user='%s' password=hidden version=%s",username,CCVERSION);
  if(!SendMsg(buff,32)) return false;

  if(emmAllowed && logReply) {
    PRINTF(L_CC_CAMD,"waiting for login reply ...");
    int r=RecvMsg(buff,emmReqLen);
    if(r>0) HandleEMMRequest(buff,r);
    }
  PRINTF(L_CC_LOGIN,"%s: login done",name);
  return true;
}
virtual bool cCardClientCommon::Login ( void  ) [virtual]

Implements cCardClient.

Reimplemented in cCardClientBuffy, and cCardClientBuffy.

bool cCardClientCommon::ParseKeyConfig ( const char *  config,
int *  num
) [protected]

Definition at line 83 of file camd.c.

References GetHex(), L_CC_CAMD, L_CC_CORE, LDUMP, cCardClient::name, PRINTF, and cAES::SetKey().

Referenced by Init().

{
  char hexkey[33];
  int startNum=*num;
  if(sscanf(&config[*num],":%32[^:]%n",hexkey,num)==1) {
    *num+=startNum;
    PRINTF(L_CC_CORE,"%s: key=%s",name,hexkey);
    unsigned char binkey[16];
    memset(binkey,0,sizeof(binkey));
    const char *line=hexkey;
    int n=GetHex(line,binkey,sizeof(binkey),false);
    if(n!=(int)sizeof(binkey))
      PRINTF(L_CC_CAMD,"warning AES key not %d bytes long",(int)sizeof(binkey));
    LDUMP(L_CC_CAMD,binkey,16,"AES activated key =");
    SetKey(binkey);
    }
  return true;
}
bool cCardClientCommon::ParseKeyConfig ( const char *  config,
int *  num
) [protected]
bool cCardClientCommon::ParseUserConfig ( const char *  config,
int *  num
) [protected]

Definition at line 72 of file camd.c.

References L_CC_CORE, cCardClient::name, password, PRINTF, and username.

Referenced by Init().

{
  int startNum=*num;
  if(sscanf(&config[*num],":%10[^:]:%10[^:]%n",username,password,num)==2) {
    *num+=startNum;
    PRINTF(L_CC_CORE,"%s: username=%s password=%s",name,username,password);;
    return true;
    }
  return false;
}
bool cCardClientCommon::ParseUserConfig ( const char *  config,
int *  num
) [protected]
virtual bool cCardClientCommon::ProcessECM ( const cEcmInfo *  ecm,
const unsigned char *  source,
unsigned char *  cw
) [virtual]

Implements cCardClient.

bool cCardClientCommon::ProcessECM ( const cEcmInfo *  ecm,
const unsigned char *  source,
unsigned char *  cw
) [virtual]

Implements cCardClient.

Definition at line 203 of file camd.c.

References AUTOMEM, cCondVar::Broadcast(), cEcmInfo::caId, cCardClient::CanHandle(), CCTIMEOUT, CheckNull(), cNetSocket::Connected(), emmProcessing, HandleEMMRequest(), L_CC_CAMD, L_CC_ECM, cMutex::Lock(), Login(), cCardClient::name, PRINTF, RecvMsg(), SCT_LEN, SendMsg(), cTimeMs::Set(), cCardClient::so, cTimeMs::TimedOut(), cCondVar::TimedWait(), cMutex::Unlock(), and cCondVar::Wait().

{
  Lock();
  bool res=false;
  while(exclusive) sleepCond.Wait(*this);
  if((so.Connected() || Login()) && (!emmProcessing || CanHandle(ecm->caId))) {
    const int length=SCT_LEN(source);
    unsigned char *buff=AUTOMEM(length+32);
    int n;
    while((n=RecvMsg(buff,-16,0))>0) HandleEMMRequest(buff,n);
    buff[0]=0x02;
    buff[1]=(ecm->caId>>8);
    buff[2]=(ecm->caId&0xFF);
    memset(&buff[3],0,4);
    memcpy(&buff[7],source,length);
    if(SendMsg(buff,length+7)) {
      exclusive=true;
      time.Set(CCTIMEOUT);
      do {
        sleepCond.TimedWait(*this,50);
        while((n=RecvMsg(buff,-32,0))>0) {
          if(n>=21 && buff[0]==2) {
            if(!CheckNull(buff+5,16)) {
              if(!res) {
                memcpy(cw,buff+5,16);
                res=true;
                }
              else PRINTF(L_CC_CAMD,"unexpected CW packet");
              }
            else {
              PRINTF(L_CC_ECM,"%s: server is unable to handle ECM",name);
              n=-1;
              break;
              }
            }
          else HandleEMMRequest(buff,n);
          }
        } while(!res && n>=0 && !time.TimedOut());
      if(!res && time.TimedOut()) PRINTF(L_CC_ECM,"%s: CW request timed out",name);
      exclusive=false;
      sleepCond.Broadcast();
      }
    }
  Unlock();
  return res;
}
virtual bool cCardClientCommon::ProcessEMM ( int  caSys,
const unsigned char *  source
) [virtual]

Reimplemented from cCardClient.

bool cCardClientCommon::ProcessEMM ( int  caSys,
const unsigned char *  source
) [virtual]

Reimplemented from cCardClient.

Definition at line 178 of file camd.c.

References AUTOMEM, cMsgCache::Cache(), CanHandleEMM(), cIdSet::card, cCardClient::emmAllowed, cMsgCache::Get(), cIdSet::MatchEMM(), cCardClient::msEMM, SCT_LEN, and SendMsg().

{
  if(emmAllowed && CanHandleEMM(caSys)) {
    cMutexLock lock(this);
    if(MatchEMM(source)) {
      const int length=SCT_LEN(source);
      int id=msEMM.Get(source,length,0);
      if(id>0 || emmAllowed>1) {
        unsigned char *buff=AUTOMEM(length+32);
        buff[0]=0x03;
        buff[1]=(caSys>>8);
        buff[2]=(caSys&0xFF);
        memcpy(buff+3,((cCardIrdeto *)card)->hexSer,3);
        buff[6]=((cCardIrdeto *)card)->hexBase;
        memcpy(&buff[7],source,length);
        //PRINTF(L_CC_CAMD,"%s: sending EMM for caid 0x%04X",name,caSys);
        SendMsg(buff,length+7);
        msEMM.Cache(id,true,0);
        }
      return true;
      }
    }
  return false;
}
virtual int cCardClientCommon::RecvMsg ( unsigned char *  data,
int  len,
int  to = -1
) [protected, virtual]

Reimplemented from cCardClient.

int cCardClientCommon::RecvMsg ( unsigned char *  data,
int  len,
int  to = -1
) [protected, virtual]

Reimplemented from cCardClient.

Definition at line 116 of file camd.c.

References cAES::Decrypt(), L_CC_CAMD, and PRINTF.

Referenced by cCardClientBuffy::Login(), Login(), and ProcessECM().

{
  int n=cCardClient::RecvMsg(data,len,to);
  if(n>0) {
    if(n&15) PRINTF(L_CC_CAMD,"AES crypted message length not a multiple of 16");
    Decrypt(data,n);
    }
  return n;
}
bool cCardClientCommon::SendMsg ( const unsigned char *  data,
int  len
) [protected, virtual]

Reimplemented from cCardClient.

Definition at line 102 of file camd.c.

References AUTOMEM, and cAES::Encrypt().

Referenced by cCardClientBuffy::Login(), Login(), ProcessECM(), and ProcessEMM().

{
  unsigned char *buff2=AUTOMEM(minMsgLen);
  if(len<minMsgLen) {
    memcpy(buff2,data,len);
    memset(buff2+len,0,minMsgLen-len);
    data=buff2; len=minMsgLen;
    }
  unsigned char *buff=AUTOMEM(len+16);
  const int l=Encrypt(data,len,buff);
  if(l>0) { data=buff; len=l; }
  return cCardClient::SendMsg(data,len);
}
virtual bool cCardClientCommon::SendMsg ( const unsigned char *  data,
int  len
) [protected, virtual]

Reimplemented from cCardClient.

Member Data Documentation

bool cCardClientCommon::emmProcessing [protected]

Definition at line 44 of file camd.c.

Referenced by cCardClientCamd33::CanHandleEMM(), cCardClientCommon(), cCardClientCamd33::HandleEMMRequest(), Login(), and ProcessECM().

int cCardClientCommon::emmReqLen [protected]

Definition at line 46 of file camd.c.

Referenced by cCardClientCamd33::cCardClientCamd33(), cCardClientCommon(), cCardClientCamd33::HandleEMMRequest(), and Login().

char cCardClientCommon::password [protected]

Definition at line 45 of file camd.c.

Referenced by Login(), and ParseUserConfig().

char cCardClientCommon::username [protected]

Definition at line 45 of file camd.c.

Referenced by Login(), and ParseUserConfig().

The documentation for this class was generated from the following files:
