#include <system.h>

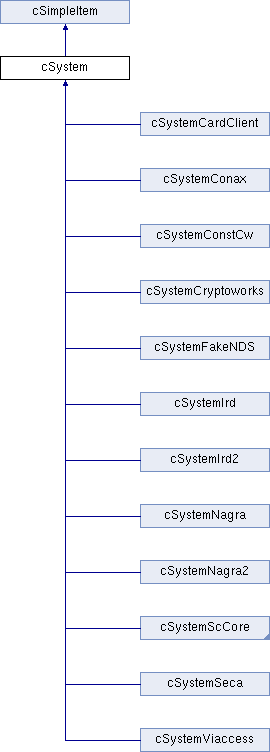

Inheritance diagram for cSystem:

Public Member Functions
	cSystem (const char *Name, int Pri)
virtual	~cSystem ()
void	SetOwner (cCam *Cam)
virtual int	CheckECM (const cEcmInfo ecm, const unsigned char data, bool sync)
virtual void	CheckECMResult (const cEcmInfo ecm, const unsigned char data, bool result)
virtual bool	ProcessECM (const cEcmInfo ecm, unsigned char buffer)=0
virtual void	ProcessEMM (int pid, int caid, const unsigned char *buffer)
virtual void	ParseCADescriptor (cSimpleList< cEcmInfo > ecms, unsigned short sysId, int source, const unsigned char data, int len)
virtual void	ParseCAT (cPids pids, const unsigned char buffer, int source, int transponder)
void	AddHook (cLogHook *hook)
bool	TriggerHook (int id)
unsigned char *	CW (void)
void	DoLog (bool Log)
int	Pri (void)
const char *	CurrentKeyStr (void)
const char *	Name (void)
int	MaxEcmTry (void)
bool	HasLogger (void)
bool	NeedsLogger (void)
bool	Local (void)
bool	NeedsData (void)
bool	Constant (void)
Static Public Member Functions
static void	CaidsChanged (void)
static void	FoundKey (void)
static void	NewKey (void)
static void	KeyStats (int &fk, int &nk)
Protected Member Functions
void	KeyOK (cPlainKey *pk)
void	KeyOK (const char *txt)
void	KeyFail (int type, int id, int keynr)
void	StartLog (const cEcmInfo *ecm, int caid)
Protected Attributes
const char *	name
unsigned char	cw [16]
bool	doLog
int	maxEcmTry
bool	local
bool	hasLogger
bool	needsLogger
bool	needsDescrData
bool	constant
Friends
class	cKeySnoop

Detailed Description

Definition at line 93 of file system.h.

Constructor & Destructor Documentation

cSystem::cSystem	(	const char *	Name,
		int	Pri
	)

Definition at line 99 of file system.c.

References constant, cw, doLog, hasLogger, local, maxEcmTry, Name(), name, needsDescrData, needsLogger, and Pri().

{
  name=Name; pri=Pri;
  currentKeyStr[0]=0; doLog=true; cam=0; logecm=0;
  check=new struct EcmCheck;
  memset(check,0,sizeof(struct EcmCheck));
  memset(cw,0,sizeof(cw));
  // default config
  maxEcmTry=2; // try to get a key X times from the same ECM pid (default)
  hasLogger=false;
  needsLogger=false;
  local=true;
  needsDescrData=false;
  constant=false;
}

cSystem::~cSystem ( ) [virtual]

Definition at line 115 of file system.c.

References cCam::LogEcmStatus().

{
  delete check;
  if(logecm && cam) cam->LogEcmStatus(logecm,false);
  delete logecm;
}

Member Function Documentation

void cSystem::AddHook ( cLogHook * hook )

Definition at line 133 of file system.c.

References cCam::AddHook().

Referenced by cTpsKeys::Check(), and cSatTime::Now().

{
  if(cam) cam->AddHook(hook);
}

void cSystem::CaidsChanged ( void ) [static]

Definition at line 143 of file system.c.

{
  cGlobal::CaidsChanged();
}

int cSystem::CheckECM	(	const cEcmInfo *	ecm,
		const unsigned char *	data,
		bool	sync
	)		`[virtual]`

Definition at line 202 of file system.c.

References EcmCheck::caid, cEcmInfo::caId, L_CORE_ECMPROC, name, PRINTF, EcmCheck::sys06, and WORD.

Referenced by cEcmHandler::Process().

{
  switch(ecm->caId>>8) {
    case 0x06: // Irdeto
      {
      const int chid=WORD(data,6,0xFFFF);
      // if multiple channel id's, use current one only
      if(sync && check->caid.sys06.current>0 && chid!=check->caid.sys06.current) {
        PRINTF(L_CORE_ECMPROC,"ecmcheck(%s): chid %04x != current %04x",name,chid,check->caid.sys06.current);
        return 3;
        }
/*
//XXX is that still needed? Seems to conflict with some Irdeto2 provider
      // search for fake channel id's on Stream
      const int cur=data[4];
      const int max=data[5];
      if(!sync && max>0 && max<MAX_CHID) {
        if(cur==0) check->caid.sys06.startFlag=true;
        if(check->caid.sys06.startFlag) {
          if(cur<=max) check->caid.sys06.chids[cur]=chid;
          if(cur==max) {
            for(int i=0 ; i<max ; i++) {
              if(check->caid.sys06.chids[i]==0) {
                check->caid.sys06.startFlag=false;
                PRINTF(L_CORE_ECMPROC,"ecmcheck(%s): zero chid",name);
                return 1;
                }
              for(int j=i+1 ; j<=max ; j++) {
                if(check->caid.sys06.chids[i]==check->caid.sys06.chids[j]) {
                  check->caid.sys06.startFlag=false;
                  PRINTF(L_CORE_ECMPROC,"ecmcheck(%s): duplicate chid %04x",name,check->caid.sys06.chids[i]);
                  return 1;
                  }
                }
              }
            }
          }
        }
*/
      break;
      }
    }
  return 0;
}

void cSystem::CheckECMResult	(	const cEcmInfo *	ecm,
		const unsigned char *	data,
		bool	result
	)		`[virtual]`

Definition at line 247 of file system.c.

References EcmCheck::caid, cEcmInfo::caId, EcmCheck::sys06, and WORD.

Referenced by cEcmHandler::Process().

{
  switch(ecm->caId>>8) {
    case 0x06: // Irdeto
      check->caid.sys06.current=result ? WORD(data,6,0xFFFF) : 0;
      break;
    }
}

bool cSystem::Constant ( void ) [inline]

Definition at line 142 of file system.h.

References constant.

Referenced by cEcmHandler::Process().

{ return constant; }

const char* cSystem::CurrentKeyStr ( void ) [inline]

Definition at line 135 of file system.h.

Referenced by cEcmHandler::CurrentKeyStr().

{ return currentKeyStr; }

unsigned char* cSystem::CW ( void ) [inline]

Definition at line 132 of file system.h.

References cw.

Referenced by main(), and cEcmHandler::Process().

{ return cw; }

void cSystem::DoLog ( bool Log ) [inline]

Definition at line 133 of file system.h.

References doLog.

Referenced by main(), and cEcmHandler::Process().

{ doLog=Log; }

static void cSystem::FoundKey ( void ) [inline, static]

Definition at line 144 of file system.h.

Referenced by cSystemViaccess::ProcessEMM(), cSystemSeca::ProcessEMM(), cSystemNagra2::ProcessEMM(), cSystemNagra::ProcessEMM(), cSystemIrd2::ProcessEMM(), and cSystemIrd::ProcessEMM().

{ foundKeys++; }

bool cSystem::HasLogger ( void ) [inline]

Definition at line 138 of file system.h.

References hasLogger.

Referenced by main(), and cLogChain::Parse().

{ return hasLogger; }

void cSystem::KeyFail	(	int	type,
		int	id,
		int	keynr
	)		`[protected]`

Definition at line 271 of file system.c.

References doLog, keys, cPlainKeys::KeyString(), L_CORE_ECM, cLastKey::NotLast(), PRINTF, and cPlainKeys::Trigger().

Referenced by cKeySnoop::~cKeySnoop().

{
  keys.Trigger(type,id,keynr);
  if(lastkey.NotLast(type,id,keynr) && doLog)
    PRINTF(L_CORE_ECM,"system: no key found for %s",*keys.KeyString(type,id,keynr));
}

void cSystem::KeyOK ( const char * txt ) [protected]

Definition at line 265 of file system.c.

References doLog, name, and tr.

{
  snprintf(currentKeyStr,sizeof(currentKeyStr),"%s (%s)\n",txt?txt:name,tr("undisclosed key"));
  doLog=true;
}

void cSystem::KeyOK ( cPlainKey * pk ) [protected]

Definition at line 256 of file system.c.

References doLog, cPlainKey::id, cPlainKey::keynr, L_CORE_ECM, cLastKey::NotLast(), PRINTF, strn0cpy(), cPlainKey::ToString(), and cPlainKey::type.

Referenced by cKeySnoop::OK(), cSystemCardClient::ProcessECM(), and cSystemScCore::ProcessECM().

{
  if(lastkey.NotLast(pk->type,pk->id,pk->keynr)) {
    strn0cpy(currentKeyStr,pk->ToString(false),sizeof(currentKeyStr));
    PRINTF(L_CORE_ECM,"system: using key %s",*pk->ToString(true));
    doLog=true;
    }
}

static void cSystem::KeyStats	(	int &	fk,
		int &	nk
	)		`[inline, static]`

Definition at line 146 of file system.h.

Referenced by cMenuInfoSc::cMenuInfoSc().

{ fk=foundKeys; nk=newKeys; }

bool cSystem::Local ( void ) [inline]

Definition at line 140 of file system.h.

References local.

{ return local; }

int cSystem::MaxEcmTry ( void ) [inline]

Definition at line 137 of file system.h.

References maxEcmTry.

Referenced by cEcmHandler::Process().

{ return maxEcmTry; }

const char* cSystem::Name ( void ) [inline]

Definition at line 136 of file system.h.

References name.

Referenced by cSystem(), main(), cLogChain::Parse(), and cEcmHandler::Process().

{ return name; }

bool cSystem::NeedsData ( void ) [inline]

Definition at line 141 of file system.h.

References needsDescrData.

Referenced by cEcmHandler::Process().

{ return needsDescrData; }

bool cSystem::NeedsLogger ( void ) [inline]

Definition at line 139 of file system.h.

References needsLogger.

{ return needsLogger; }

static void cSystem::NewKey ( void ) [inline, static]

Definition at line 145 of file system.h.

Referenced by cSystemViaccess::ProcessEMM(), cSystemSeca::ProcessEMM(), cSystemNagra2::ProcessEMM(), cSystemNagra::ProcessEMM(), cSystemIrd2::ProcessEMM(), and cSystemIrd::ProcessEMM().

{ newKeys++; }

void cSystem::ParseCADescriptor	(	cSimpleList< cEcmInfo > *	ecms,
		unsigned short	sysId,
		int	source,
		const unsigned char *	data,
		int	len
	)		`[virtual]`

Reimplemented in cSystemScViaccess, and cSystemViaccess.

Definition at line 148 of file system.c.

References cSimpleListBase::Add(), name, cEcmInfo::SetDataIdx(), and WORD.

{
  const int pid=WORD(data,2,0x1FFF);
  switch(sysId>>8) {
    case 0x01: // Seca style
      for(int p=2; p<len; p+=15) {
        cEcmInfo *n=new cEcmInfo(name,WORD(data,p,0x1FFF),sysId,WORD(data,p+2,0xFFFF));
        if(data[p+4]==0xFF) n->SetDataIdx(p+5);
        ecms->Add(n);
        }
      break;
    case 0x05: // Viaccess style
      for(int p=4; p<len; p+=2+data[p+1])
        if(data[p]==0x14)
          ecms->Add(new cEcmInfo(name,pid,sysId,(data[p+2]<<16)|(data[p+3]<<8)|(data[p+4]&0xF0)));
      break;
    default:   // default style
      ecms->Add(new cEcmInfo(name,pid,sysId,0));
      break;
    }
}

void cSystem::ParseCAT	(	cPids *	pids,
		const unsigned char *	buffer,
		int	source,
		int	transponder
	)		`[virtual]`

Definition at line 170 of file system.c.

References cOverrides::AddEmmPids(), cPids::AddPid(), caid, i, overrides, and WORD.

Referenced by cLogChain::Parse().

{
  if(buffer[0]==0x09) {
    int caid=WORD(buffer,2,0xFFFF);
    int pid=WORD(buffer,4,0x1FFF);
    if(overrides.AddEmmPids(caid,source,transponder,pids,pid)) return;
    switch(caid>>8) {
      case 0x01: // Seca style (82/84)
        if(buffer[1]>4) {
          pids->AddPid(pid,0x82,0xFF); // Unique updates
          for(int i=7, nn=buffer[6] ; nn ; nn--,i+=4)
            pids->AddPid(WORD(buffer,i,0x1FFF),0x84,0xFF); // Shared updates
          }
        break;
      case 0x05: // Viaccess style (88/8c/8d/8e)
        pids->AddPid(pid,0x88,0xF9); // mismatching 8a
        pids->AddPid(pid,0x8D,0xFF);
        break;
      case 0x0d: // Cryptoworks style (82/84/86/88/89)
        pids->AddPid(pid,0x82,0xF9); // mismatching 80
        pids->AddPid(pid,0x88,0xFE);
        break;
      case 0x18: // Nagra style (82/83)
        pids->AddPid(pid,0x82,0xFE);
        break;
      default:   // default style (82)
        pids->AddPid(pid,0x82,0xFF);
        break;
      }
    }
}

int cSystem::Pri ( void ) [inline]

Definition at line 134 of file system.h.

Referenced by cSystem(), main(), and cLogChain::Parse().

{ return pri; }

virtual bool cSystem::ProcessECM	(	const cEcmInfo *	ecm,
		unsigned char *	buffer
	)		`[pure virtual]`

Implemented in cSystemScCore, cSystemCardClient, cSystemConax, cSystemConstCw, cSystemCryptoworks, cSystemIrd, cSystemIrd2, cSystemNagra, cSystemNagra2, cSystemFakeNDS, cSystemSeca, and cSystemViaccess.

Referenced by main(), and cEcmHandler::Process().

virtual void cSystem::ProcessEMM	(	int	pid,
		int	caid,
		const unsigned char *	buffer
	)		`[inline, virtual]`

Reimplemented in cSystemScCore, cSystemCardClient, cSystemIrd, cSystemIrd2, cSystemNagra, cSystemNagra2, cSystemSeca, and cSystemViaccess.

Definition at line 125 of file system.h.

Referenced by main().

{};

void cSystem::SetOwner ( cCam * Cam ) [inline]

Definition at line 119 of file system.h.

Referenced by cLogChain::Parse().

{ cam=Cam; }

void cSystem::StartLog	(	const cEcmInfo *	ecm,
		int	caid
	)		`[protected]`

Definition at line 122 of file system.c.

References caid, cEcmInfo::caId, cEcmInfo::emmCaId, and cCam::LogEcmStatus().

Referenced by cSystemNagra2::ProcessECM().

{
  if(!logecm || logecm->caId!=caid) {
    if(logecm && cam) cam->LogEcmStatus(logecm,false);
    delete logecm;
    logecm=new cEcmInfo(ecm);
    logecm->caId=caid; logecm->emmCaId=0;
    if(cam) cam->LogEcmStatus(logecm,true);
    }
}

bool cSystem::TriggerHook ( int id )

Definition at line 138 of file system.c.

References cCam::TriggerHook().

Referenced by cTpsKeys::Check(), and cSatTime::Now().

{
  return cam && cam->TriggerHook(id);
}

Friends And Related Function Documentation

friend class cKeySnoop [friend]

Definition at line 94 of file system.h.

Member Data Documentation

bool cSystem::constant [protected]

Definition at line 110 of file system.h.

Referenced by Constant(), cSystem(), and cSystemConstCw::cSystemConstCw().

unsigned char cSystem::cw[16] [protected]

Definition at line 106 of file system.h.

Referenced by cSystem(), cSystemFakeNDS::cSystemFakeNDS(), CW(), cSystemViaccess::ProcessECM(), cSystemSeca::ProcessECM(), cSystemFakeNDS::ProcessECM(), cSystemNagra2::ProcessECM(), cSystemNagra::ProcessECM(), cSystemIrd2::ProcessECM(), cSystemIrd::ProcessECM(), cSystemCryptoworks::ProcessECM(), cSystemConstCw::ProcessECM(), cSystemCardClient::ProcessECM(), and cSystemScCore::ProcessECM().

bool cSystem::doLog [protected]

Definition at line 107 of file system.h.

Referenced by cSystem(), DoLog(), KeyFail(), KeyOK(), cSystemSeca::ProcessECM(), cSystemFakeNDS::ProcessECM(), cSystemNagra2::ProcessECM(), cSystemNagra::ProcessECM(), cSystemIrd2::ProcessECM(), cSystemIrd::ProcessECM(), cSystemCryptoworks::ProcessECM(), and cSystemConax::ProcessECM().

bool cSystem::hasLogger [protected]

Definition at line 110 of file system.h.

Referenced by cSystem(), cSystemCardClient::cSystemCardClient(), cSystemIrd::cSystemIrd(), cSystemIrd2::cSystemIrd2(), cSystemNagra::cSystemNagra(), cSystemNagra2::cSystemNagra2(), cSystemScConax::cSystemScConax(), cSystemScCryptoworks::cSystemScCryptoworks(), cSystemScIrdeto::cSystemScIrdeto(), cSystemScNagra::cSystemScNagra(), cSystemScSeca::cSystemScSeca(), cSystemScViaccess::cSystemScViaccess(), cSystemScVideoGuard2::cSystemScVideoGuard2(), cSystemSeca::cSystemSeca(), cSystemViaccess::cSystemViaccess(), and HasLogger().

bool cSystem::local [protected]

Definition at line 110 of file system.h.

Referenced by cSystem(), cSystemCardClient::cSystemCardClient(), and Local().

int cSystem::maxEcmTry [protected]

Definition at line 109 of file system.h.

Referenced by cSystem(), MaxEcmTry(), and cSystemViaccess::ProcessECM().

const char* cSystem::name [protected]

Definition at line 105 of file system.h.

Referenced by CheckECM(), cSystem(), KeyOK(), Name(), and ParseCADescriptor().

bool cSystem::needsDescrData [protected]

Definition at line 110 of file system.h.

Referenced by cSystem(), cSystemScSeca::cSystemScSeca(), and NeedsData().

bool cSystem::needsLogger [protected]

Definition at line 110 of file system.h.

Referenced by cSystem(), and NeedsLogger().

The documentation for this class was generated from the following files:

sc/PLUGINS/src/sc-src/system.h
sc/PLUGINS/src/sc-src/system.c

cSystem Class Reference

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
